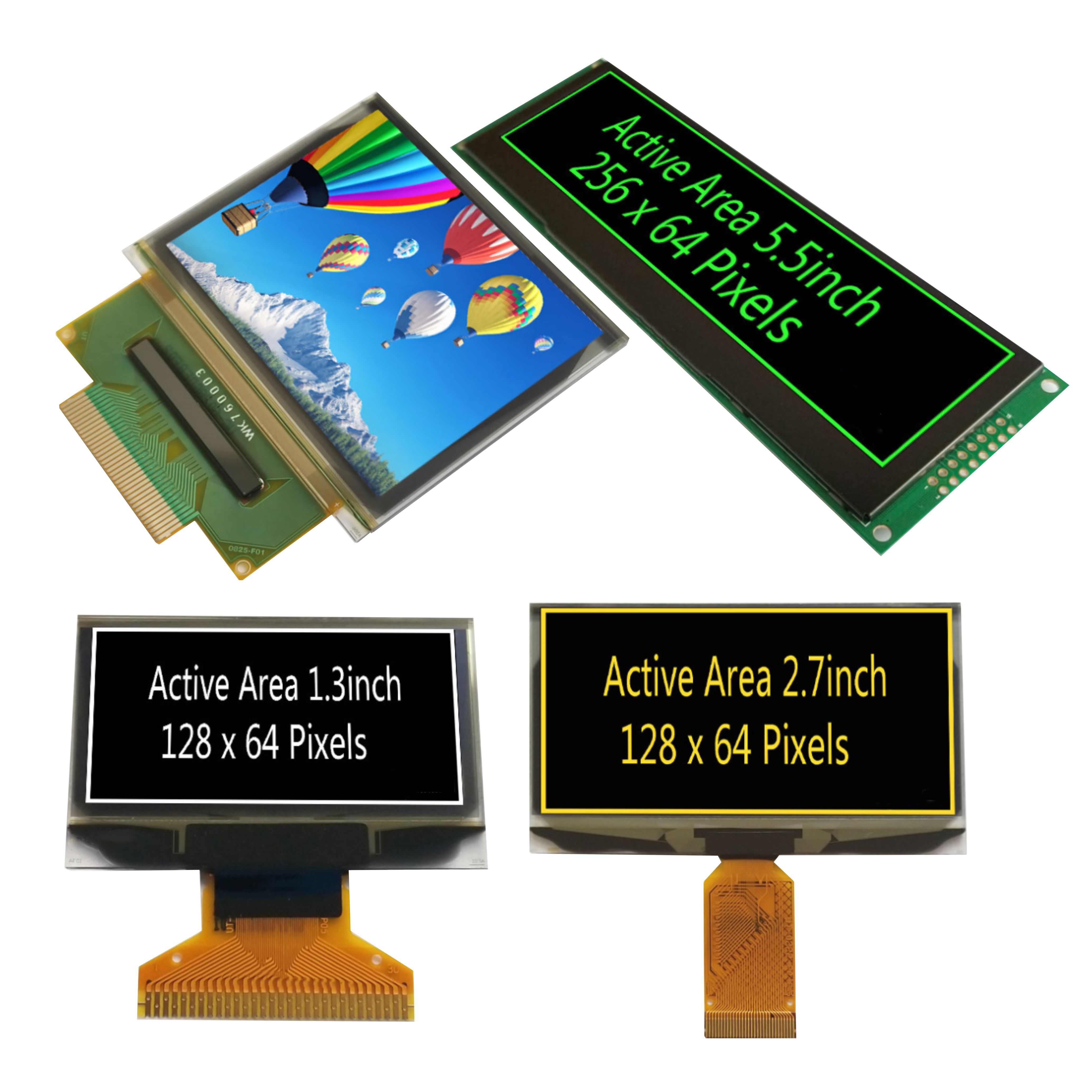

YABIN graphic monochrome OLED display resolution is in 128x32 ，128x64 and 256x64 OLED. Full color OLED display resolution is in 128x28 and 160x128 .The graphic OLED display in the YABIN product range have on-board controllers and interfaces include parallel, serial, and I2C OLED, SPI OLED. These OLED display modules have driven voltages of 3V, or 5V depending on resolution/color.
YABIN offers a wide range of OLED display modules in sizes from 0.48" OLED, 0.66" OLED, 0.91" OLED, 0.96" OLED, 1.3" OLED to 5.5" OLED.
YABIN small OLED display module are perfect for a number of devices that require electronic display panel. These applications include wearable devices, E-cigarette, POS system, white goods, home applications, industrial instrument, POS system, automation, audio/visual display systems, medical devices, personal care appliances, household goods, automobile displays , Dynamic information displays.
| Display Format | Picture | Model No. | Color | Size(inch) | Outine Dimension (mm) |
Viewing Area (mm) |
Active Area (mm) |
Volatge(V) | Interface | IC part No. |
|---|---|---|---|---|---|---|---|---|---|---|
| 128X32 |  |

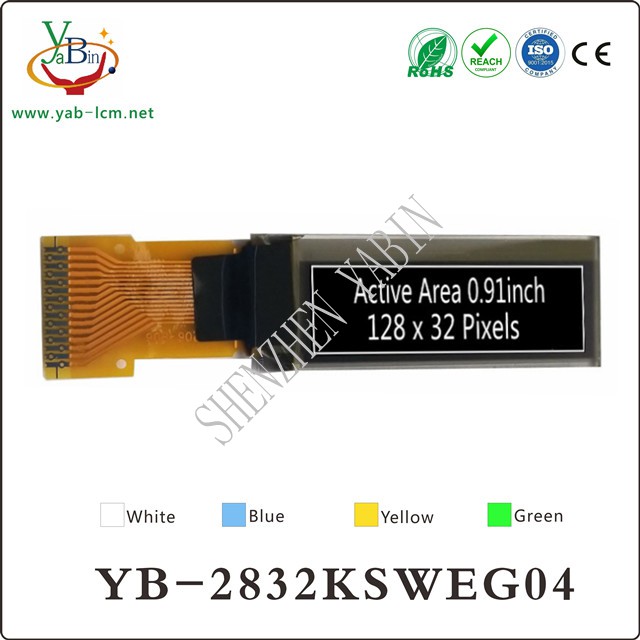

YB-2832KSWEG04 | White / Blue / Yellow /Green | 0.91 inch | 30x11.5x1.45 mm | 24.384x7.584 mm | 22.384x5.584 mm | 3V | 4-wire SPI | SSD1306 |
| 128x64 |  |

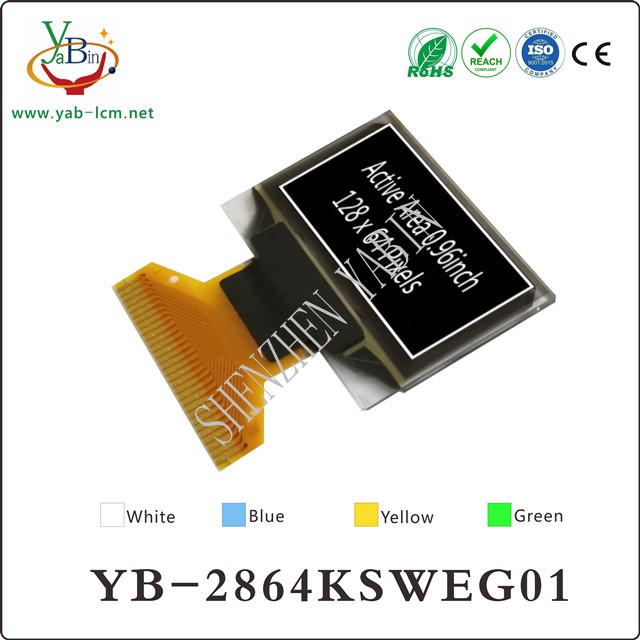

YB-2864KSWEG01 | White / blue / yellow /green | 0.96 inch | 26.7x31.26x1.45 mm | 23.744x12.864 mm | 21.744x10.864 mm | 3.3V | 8-bit 68XX/80XX Parallel, 3-/4-wire SPI, I2C | SSD1306 |
| 128x64 |  |

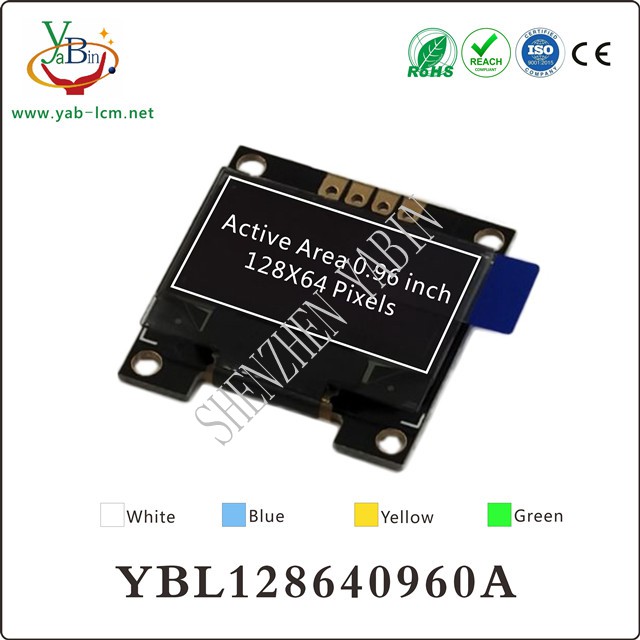

YBL128640960A | White / blue / yellow /green | 0.96 inch | 27.5x27.8x3 mm | 23.74x13.204 mm | 21.74x11.204 | 3.3V | I2C | SSD1306 |
| 128x64 |  |

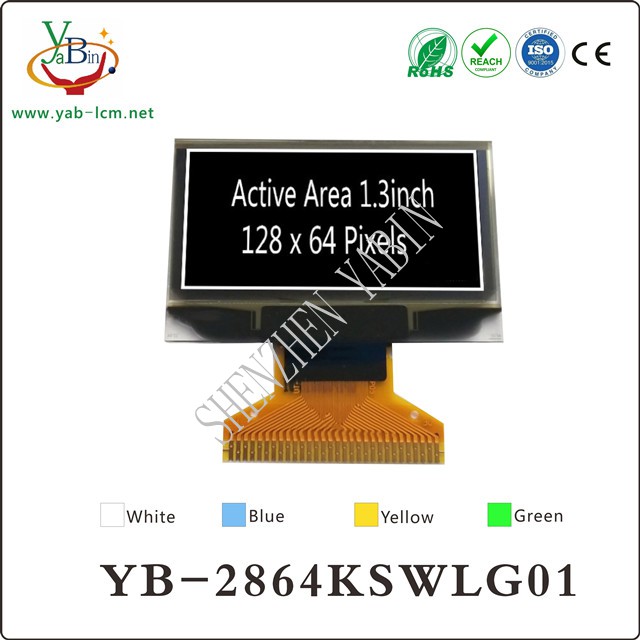

YB-2864KSWLG01 | White / blue / yellow /green | 1.3 inch | 34.5X35X1.4 MM | 31.42X16.7 mm | 29.42X14.7 MM | 3.3V | 8-bit 68XX/80XX Parallel, 3-/4-wire SPI, I2C | SSD1306 |
| 128x64 |  |

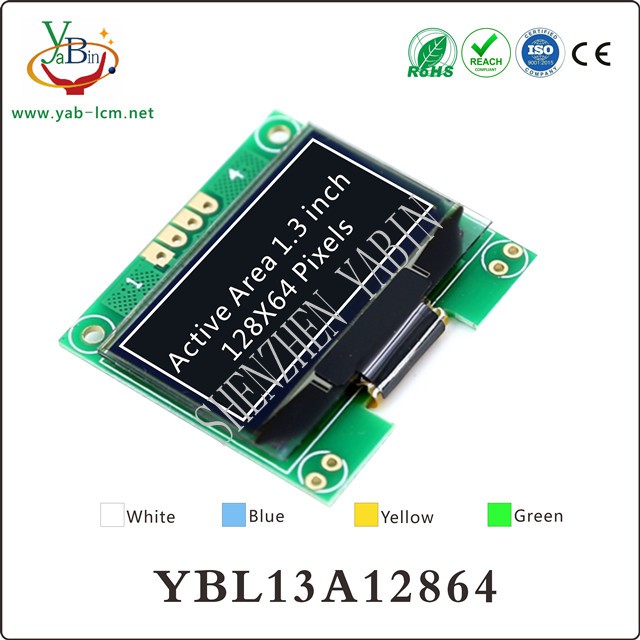

YBL13A12864 | White / blue / yellow /green | 1.3 inch | 35.4x33.5x3.1 mm | 31.42x16.7 mm | 29.42x14.7 mm | 3.3V/5V | I2C | SSD1306 |
| 128x64 |  |

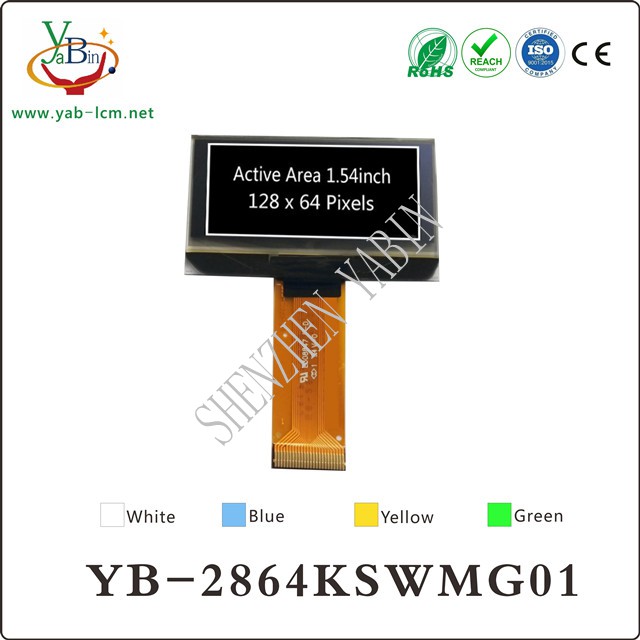

YB-2864KSWMG01 | White / blue / yellow /green | 1.54 inch | 42.04x27.22x1.45 mm | 37.052x19.516 mm | 35.052x17.516 mm | 3.3V | 8-bit 68XX/80XX Parallel, 4-wire SPI, I2c | SSD1309 |
| 128x64 |  |
YB1540A | White / blue / yellow /green | 1.54 inch | 46.5x51.5x7.2 mm | 37x19.5 mm | 35.06x17.52 mm | 3.3V/5V | 8-BIT 68XX/80XX Parallel, 4-wire SPI,I2C | SSD1305 |
| 128X128 |  |
YB-2828GDEDF11 | Full color | 1.5 inch | 33.8X48.35X1.6 mm | 28.855x28.864 mm | 26.855x26.864mm | 3.3V | 8-bits 68XX/80XX Parallel, 3-/4-wire SPI | SSD1351 |
| 160X128 |  |

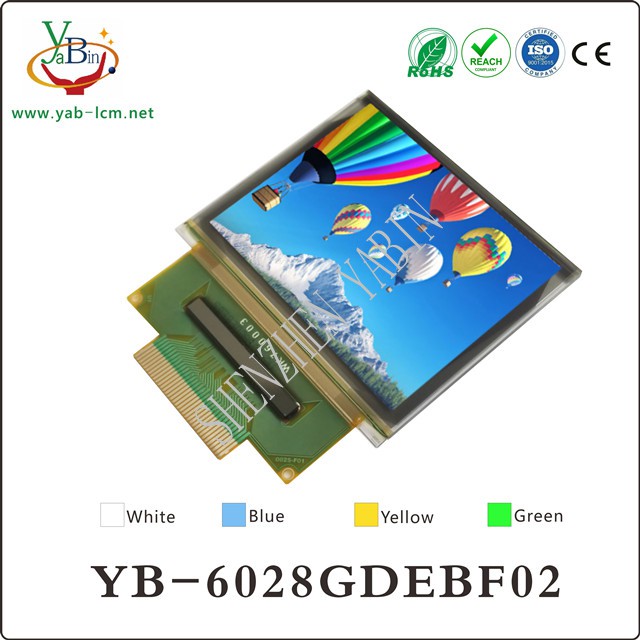

YB-6028GDEBF02 | Full color | 1.69 inch | 39.9x48.5x1.6 mm | 35.575x28.864 mm | 33.575x26.864 mm | 3.3V | 8-/9-bit 68XX/80XX Parallel, 4-wire SPI, 6-bit RGB I/F | SEPS525 |
| 128X32 |  |

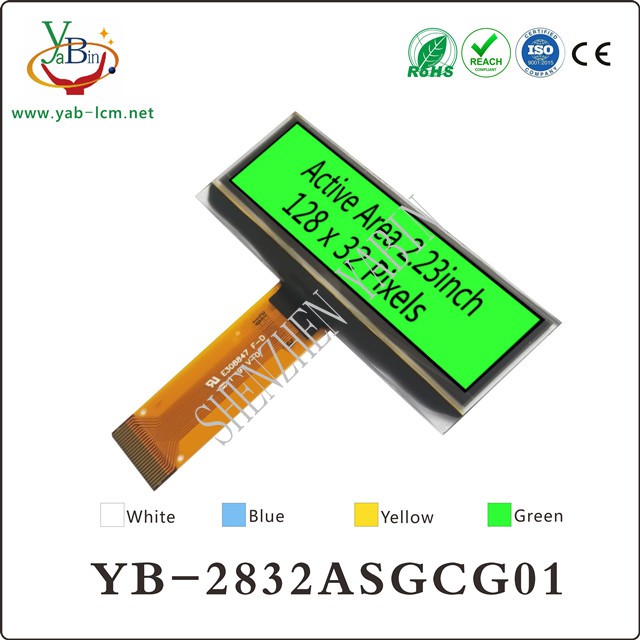

YB-2832ASGCG01 | White / blue / yellow /green | 2.23 inch | 62x24x2mm | 57.02x15.1 mm | 55.02x13.1 mm | 3.3V | 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C | SSD1305/SSD1309 |
| 128X32 |  |
YB28320230B | White / blue / yellow /green | 2.23 inch | 66.5x35x7.8 mm | 57x15.1 mm | 55.02x13.1 mm | 3.3V | 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C | SSD1305 |
| 128x64 |  |
YB-2864ASWPG14 | White / blue / yellow /green | 2.42 inch | 60.5x37x2 mm | 57.01x29.49 mm | 55.01x27.49 mm | 3.3V | 8-bit 68XX/80XX Parallel, 4-wire SPI, I2c | SSD1309 |
