1.54 inch 128X64 OLED screen:YB-2864KSWMG01

Model No.： YB-2864KSWMG01

►Type: Graphic
►Size: 1.54"
►Suitable for Wearable Device
►128 x 64 Dot Matrix
►Built-in controller SSD1309
►3.3V Power supply
►1/64 duty
►Interface: 6800,8080,I2C,SPI
►Display Color: White / Yellow / Green/Blue

DESCRIPTION

YABIN 1.54 inch OLED screen is made of 128x64 pixels, diagonal size 1.54 inch. This graphic display is having the module dimension of 42.04 x 27.22 mm and AA size of 35.05 x 17.51 mm; it is built in with SSD1309 controller IC and it communicates via 6800/8080 8-bit parallel, I2C and 4-wire serial SPI interface. This OLED it is very thin, only 1.45 mm in depth. 1.54 inch OLED screen can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +80℃.

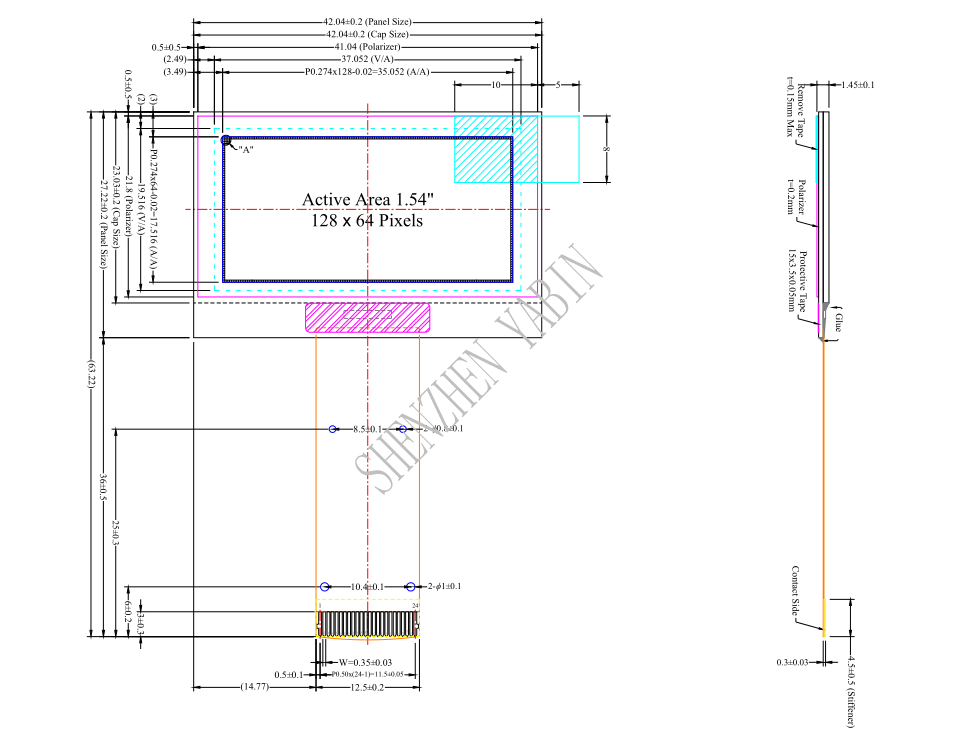

DRAWING


SPECIFICATIONS

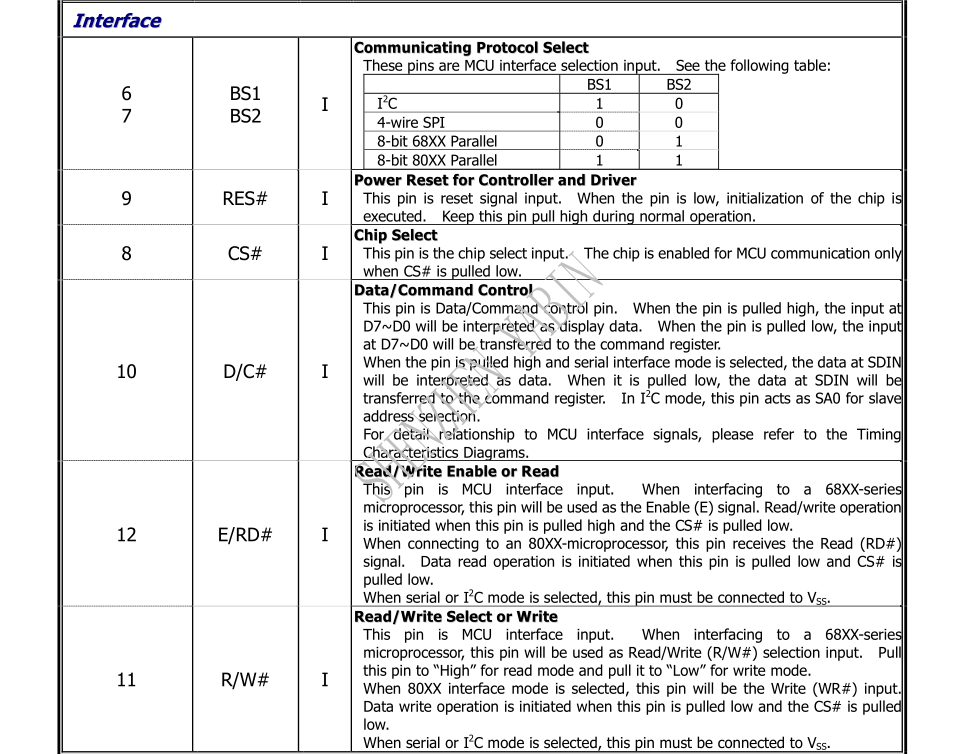

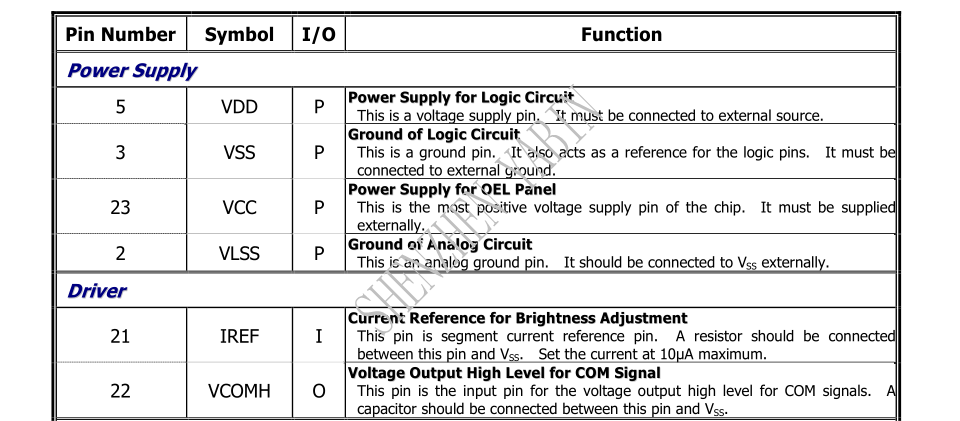

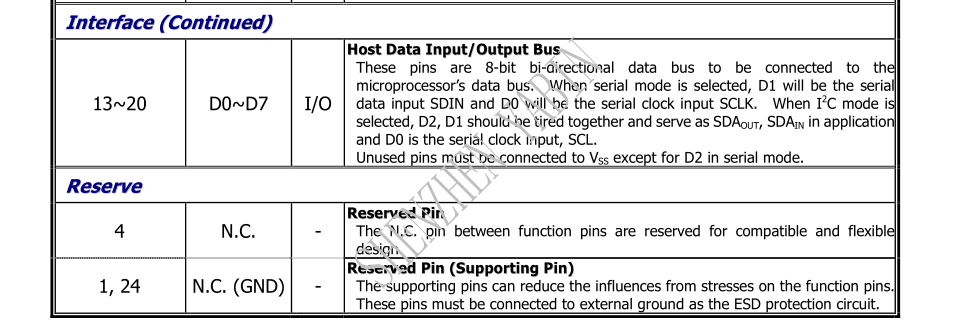

Interface Pin Function
