  • COG LCD Displays, Chip on Glass LCD Modules, COG LCM

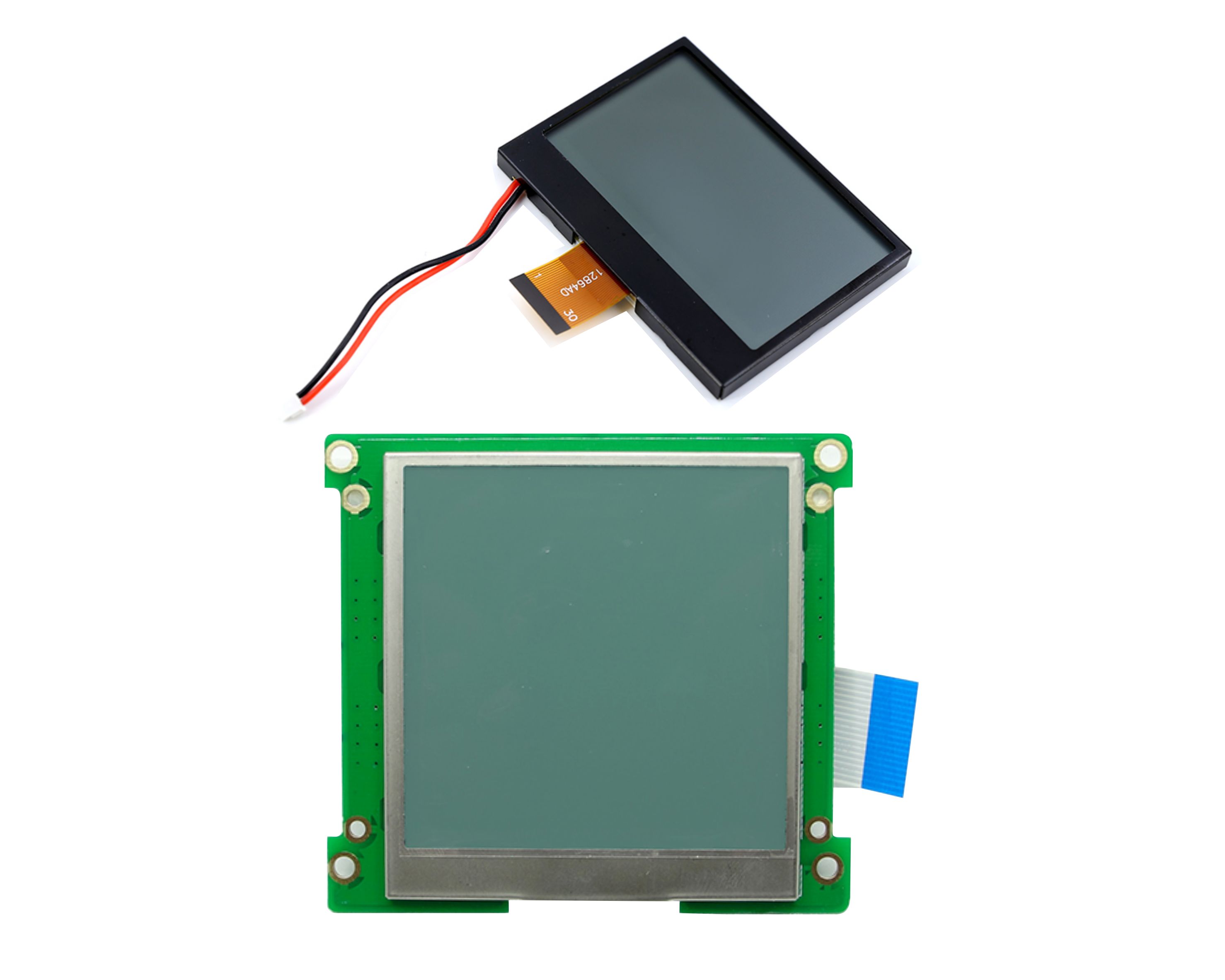

    YABIN COG LCD modules (Chip-on-Glass LCD Module) monochrome display provides graphic type in resolution of 128X34 to 320x240 .

    The COG package offers high quality with the benefits of light weight, and low power consumption. Also, it is available to add a connection board for each item to change the interface from FPC to pins or cables. We can offer a variety of pin out connections to suit your requirements. The COG LCM technology is very suitable for the applications that demand more compact package displays.

    • COG lcd

    Display Format Picture Model No. Color Outine Dimension
    (mm)    		 Viewing Area
    (mm)    		 Active Area
    (mm)    		 Volatge(V) Interface IC part No. With backlight

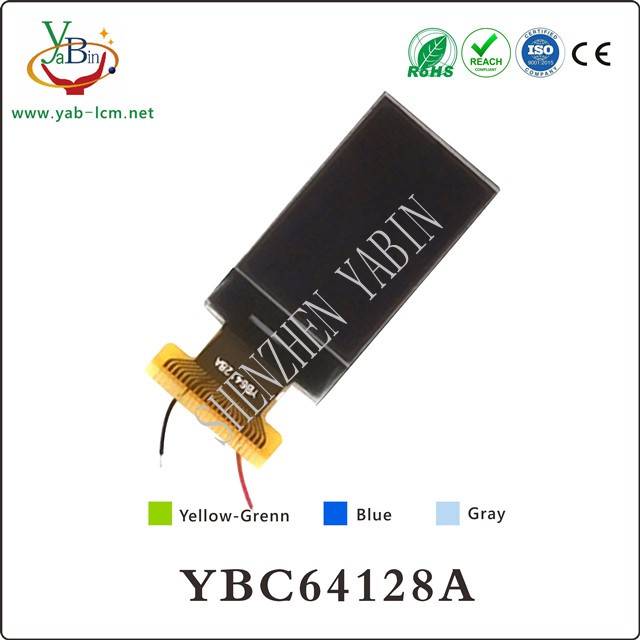

    64x128 COG type 64X128 lcd YBC64128 YBC64128 Black 18x33x1.75 mm 23.74x12.86 mm 21.74x10.86 mm 3.3V 6800-Series OR 8080 Series MPU OR 4-Line SPI interface OR I2C Interface ST7539I YES
    128x34 128X34 COG LCD YBC12834 YBC12834 Black 55x23x2.85 mm 44.78x13.58 mm 0.33X0.38 mm 3.3V 4-Line SPI interface ST7567 Yes
    128X64 128x64 COG LCD Module YBC12864A-001615A YBC128164A-001615A Gray 86x72x2.1 mm 82x61 mm 79.32x58.84 mm 3.3V 6800-Series OR 8080 Series MPU OR 4-Line SPI interface ST4565P YES
    128X64 128x64 COG LCD Module YBC12864AD YBC12864AD Yellow-Green /Gray 72x52.6x6.2 mm 66.8x40 mm 60.78x32.94 mm 3.3V 6800-Series OR 8080 Series MPU OR 4-Line SPI interface ST7565R YES

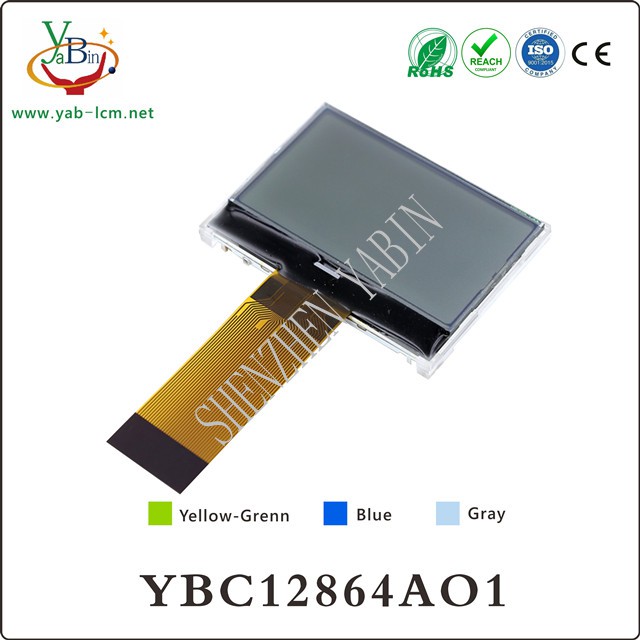

    128x64 Chip-on-Glass LCD Module 128x64 YBC12864AO1 YBC12864AO1 Gray 55.2x39.8x5 mm 49.9x27.8 mm 40.93x24.29 mm 3.3V 8080 MCU Interface OR 6800 MCU Interface OR 4-SPI ST7565R YES

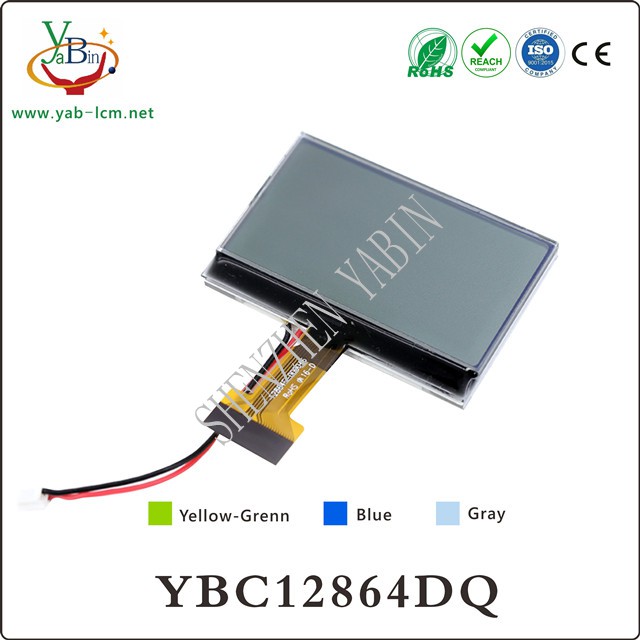

    128x64 128x64 Monochrome LCD :YBC12864DQ YBC12864DQ Gray 56.4x37x5.8 mm 53.8x28.8 mm 48.5x24.93 mm 3.3V 8080-series parallel interface ST7567 YES

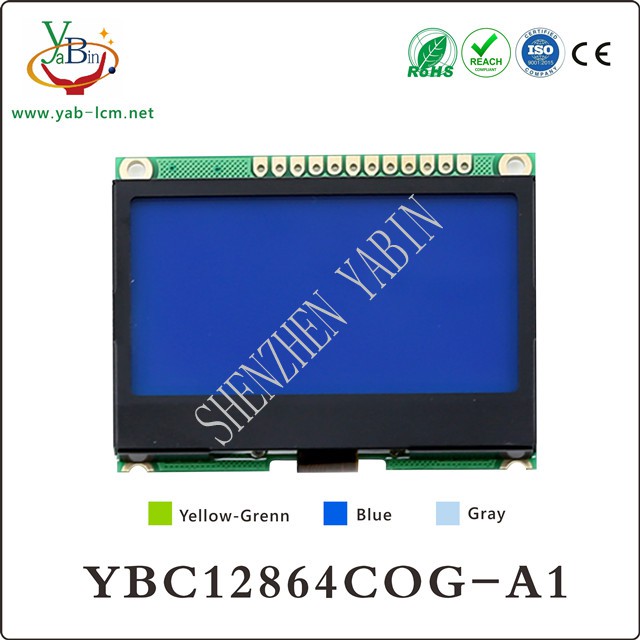

    128x64 LCD COG Module 128x64 YBC12864COG-A1 YBC12864COG-A1 Blue / Gray 58x45x8.5 mm 52.8x27.9 mm 48.6x24.9 mm 3.3V 8080 MCU Interface OR 6800 MCU Interface OR 4-SPI ST7567 Yes

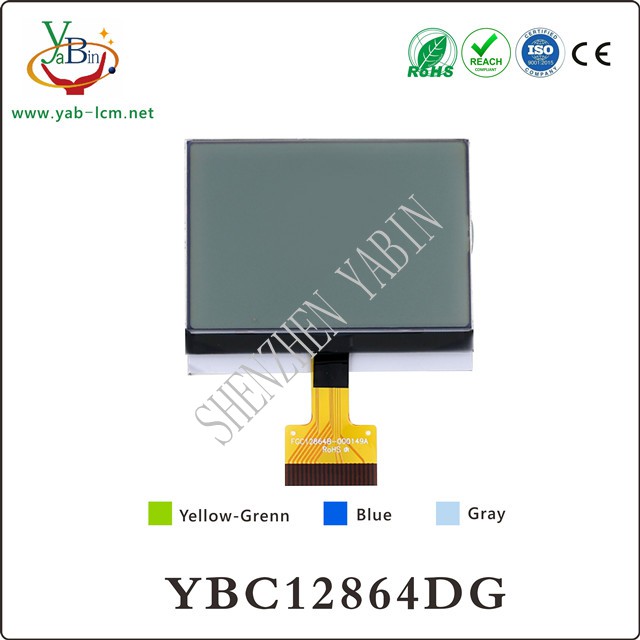

    128x64 Monochrome Display 128x64 - COG :YBC12864DG YBC12864DG Gary 66x54.5x6.55 mm 63x42.6 mm 56.27x38.35 mm 3.3V Serial 4-Line SPI interface ST7567 YES

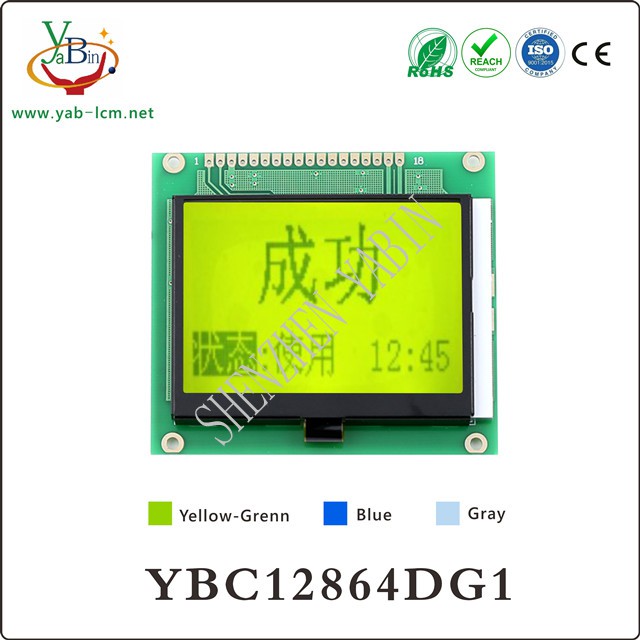

    128x64 Monochrome Display 128x64 - COG YBC12864DG1 YBC12864DG1 Yellow-Green /Gray 78x70x12.5 mm 62x44 mm 56.27x38.35 mm 3.3V Serial 4-Line SPI interface ST7567 YES

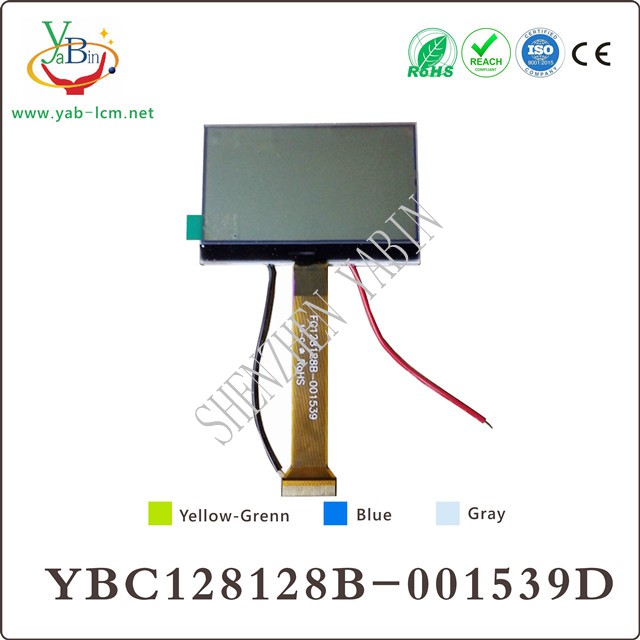

    128X128 COG Graphic LCD 128x128 :YBC128128B-001539D YBC128128B-001539D Gray 38x45x4.2 mm 35x35 mm 29.41x29.41 mm 3.3V 4-Line SPI interface ST7571 YES

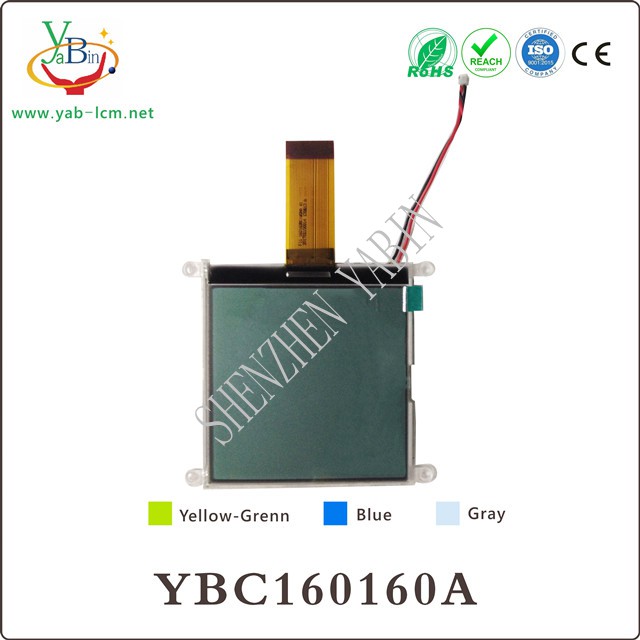

    160X160 Chip-on-Glass LCD Module 160x160 :YBC160160A YBC160160A Gray 79.7x72.6x5 mm 60.4x60.4 mm 54.38x54.38 mm 3.3V 8080/6800-series parallel interface UC1698U YES

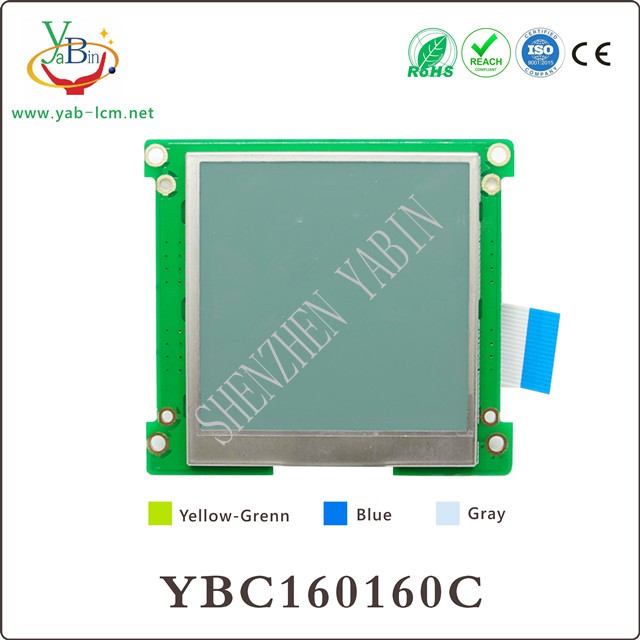

    160x160 160x160 COG LCD Display :YBC160160C YBC160160C Gray 83.8x76.5x8.2 mm 60x60 mm 54.38x54.38 mm 3.3V 8080 MCU Interface OR 6800 MCU Interface UC1698U YES
