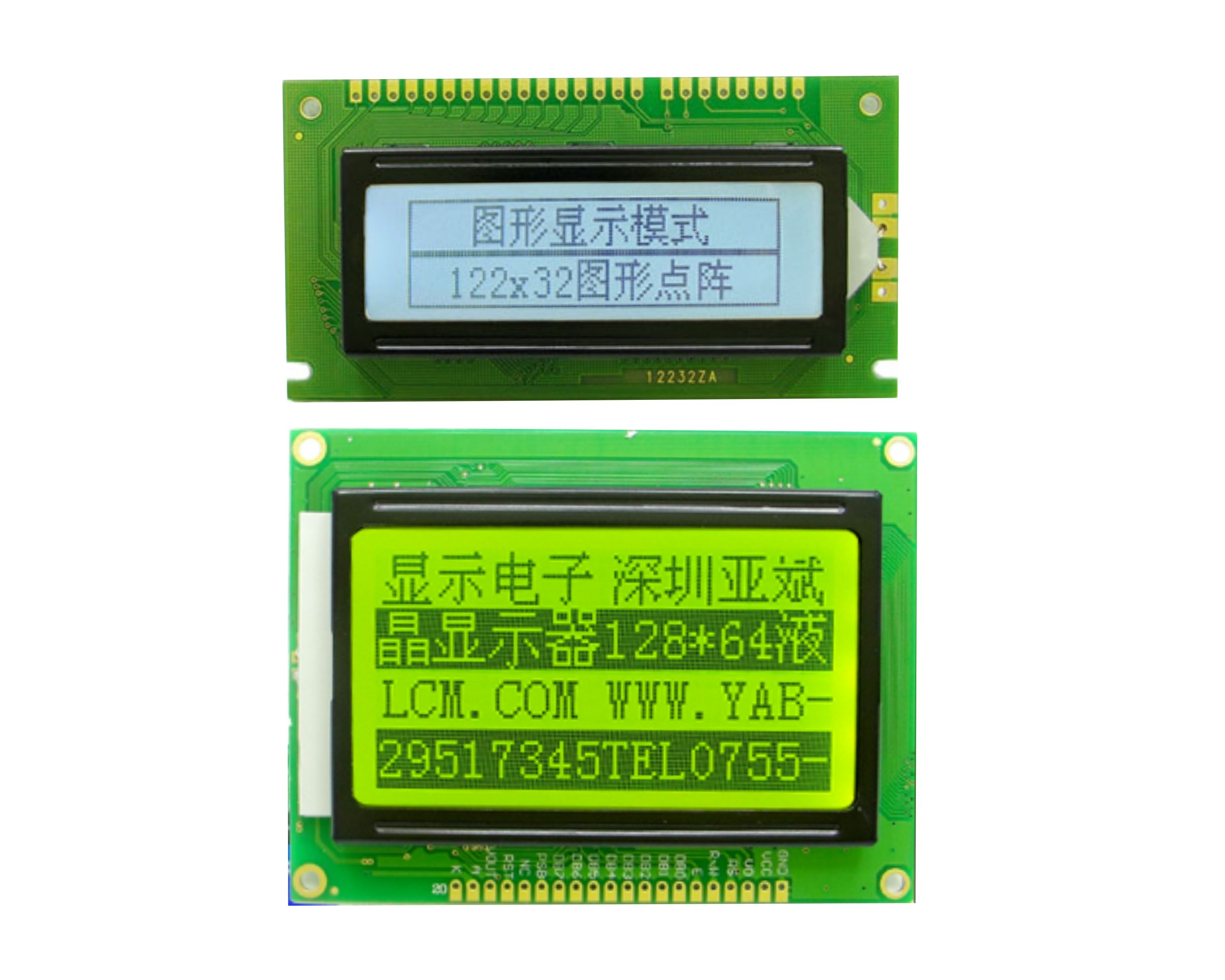

  • Chinese Font Graphic LCD Display with ST7920 driver IC

    YABIN's Chinese Font graphic LCD displays (liquid crystal display) are available in dot matrix format of graphic resolution including 122x32, 128X32 ,128x64, 160x32, 192x64, 240x128, 320x240and etc.

    YABIN's graphic LCD can be used on instrument and industry machinery equipment as well as electrical home appliances, consumer electronics including white goods, POS system, home applications, industrial instrument, automation, audio/visual display systems, and medical devices.

    • Chinese lcd

    Display Format Picture Model No. Color Outine Dimension
    (mm)    		 Viewing Area
    (mm)    		 Active Area
    (mm)    		 Volatge(V) Interface IC part No. PIN Quantity

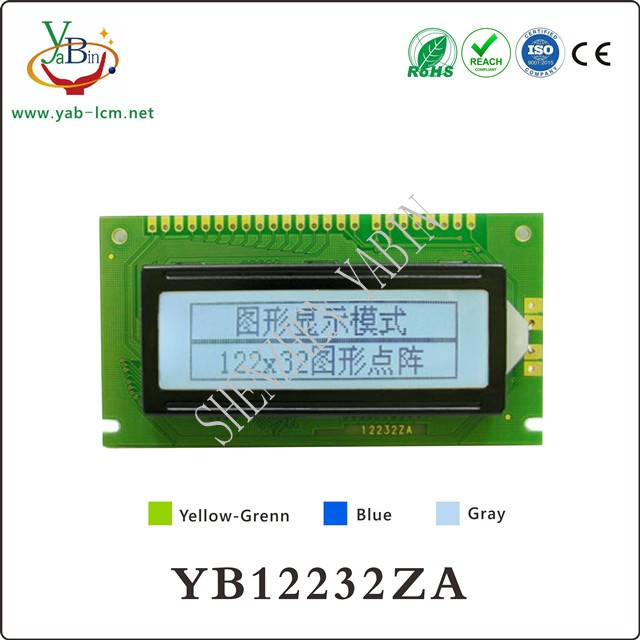

    122x32 LCD Display Graphic 122x32 YB12232ZA YB12232ZA Yellow-Green / Blue / Gray 84x44x13 mm 60x18 mm 53.64x15.64 mm 3.3V/5V 8-bit/4-bit Parallel,3-SPI Serial ST7920 or EQV 16 PIN

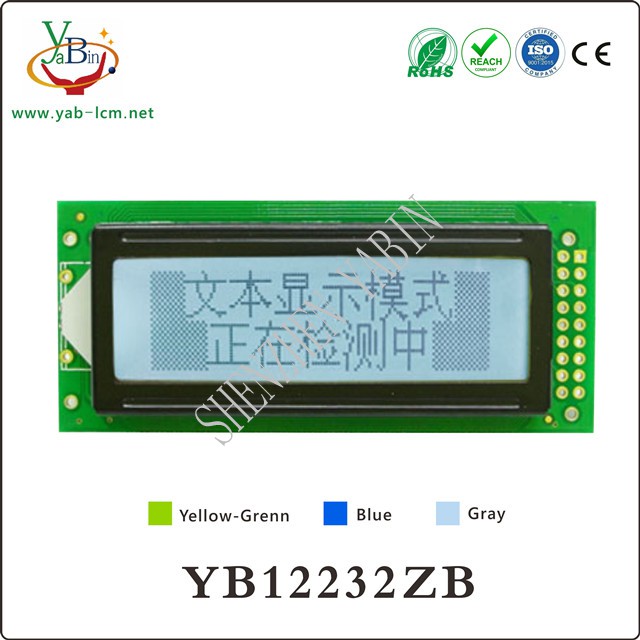

    122x32 122X32 garphic lcd module YB12232ZB YB12232ZB Yellow-Green / Blue / Gray 80x35x12.8 mm 60x18 mm 53.64x15.64 mm 3.3V/5V 8-bit/4-bit Parallel,3-SPI Serial ST7920 or EQV 18 PIN

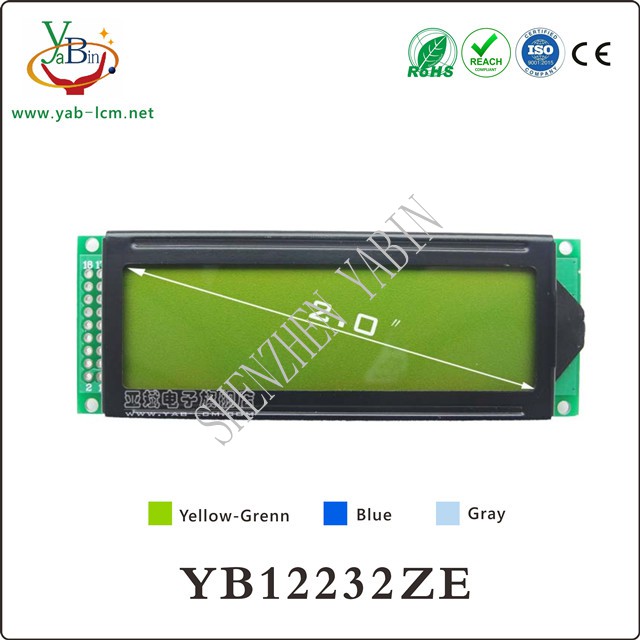

    122x32 122 x 32 Liquid Crystal Display YB12232ZE YB12232ZE Yellow-Green / Blue / Gray 79x28x8.7 mm 60x18 mm 53.64x15.64 mm 3.3V/5V 8-bit/4-bit Parallel,3-SPI Serial ST7920 or EQV 18 PIN

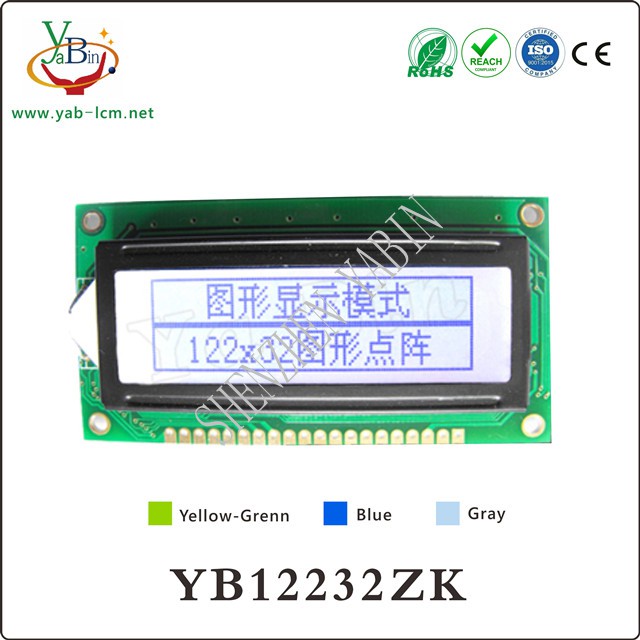

    122X32 graphic lcd display 12232 YB12232ZK YB12232ZK Yellow-Green / Blue / Gray 80.7x42.9x13 mm 60x18 mm 53.64x15.64 mm 3.3V/5V 8-bit/4-bit Parallel,3-SPI Serial ST7920 or EQV 20 PIN

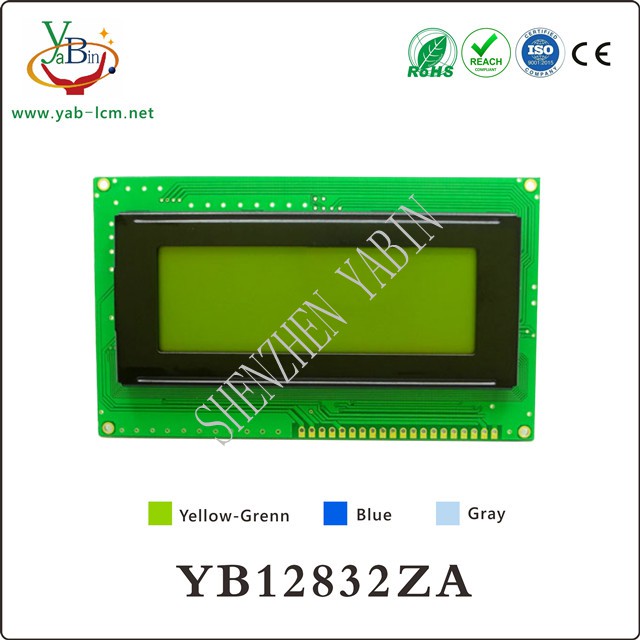

    128x32 128X32 graphic lcd display YB12832ZA YB12832ZA Yellow-Green / Blue / Gray 110x65x14.5 mm 76x25 mm 72.91x18.19 mm 3.3V/5V 8-bit/4-bit Parallel,3-SPI Serial ST7920 or EQV 20 PIN

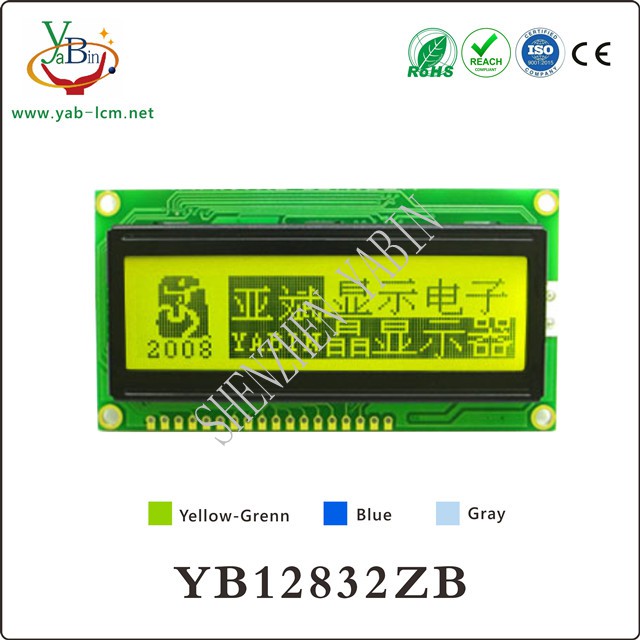

    128x32 Chinese Font 128X32 graphic lcd YB12832ZB YB12832ZB Yellow-Green / Blue / Gray 84x44x14 mm 70x20 mm 66.5x16.6 mm 3.3V/5V 8-bit/4-bit Parallel,3-SPI Serial ST7920 or EQV 18 PIN

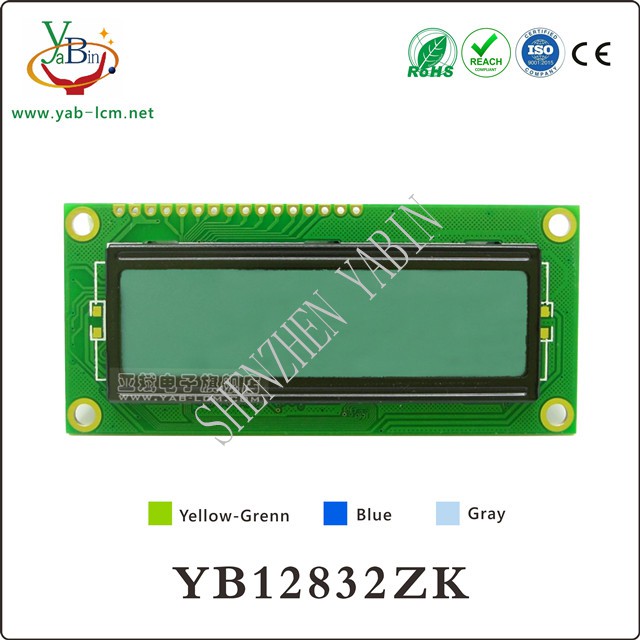

    128x32 128X32 graphic diplsy YB12832ZK YB12832ZK Yellow-Green / Blue / Gray 83.5x37.5x8.5 mm 65x17 mm 54.99x11.39 mm 3.3V/5V 8-bit/4-bit Parallel,3-SPI Serial ST7920 or EQV 16 PIN

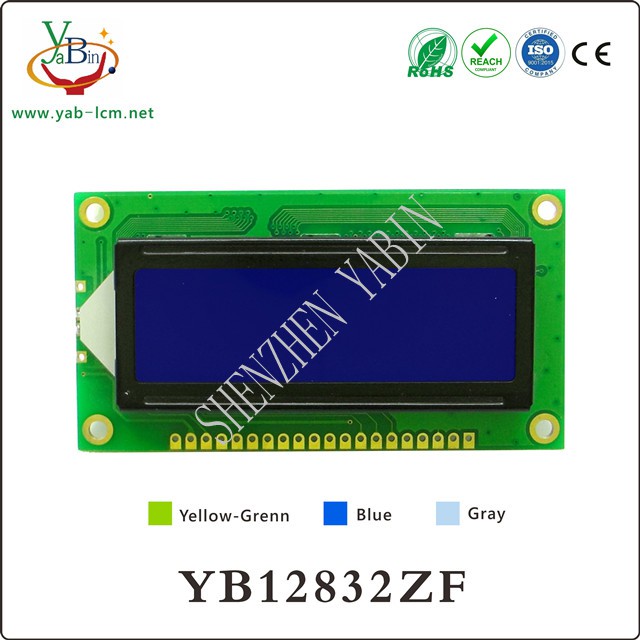

    128X32 lcd module 128X32 YB12832ZF YB12832ZF Yellow-Green / Blue / Gray 80.6x42.8x12.8 mm 60x18 mm 51.16x14.36 mm 3.3V/5V 8-bit/4-bit Parallel,3-SPI Serial ST7920 or EQV 20 PIN

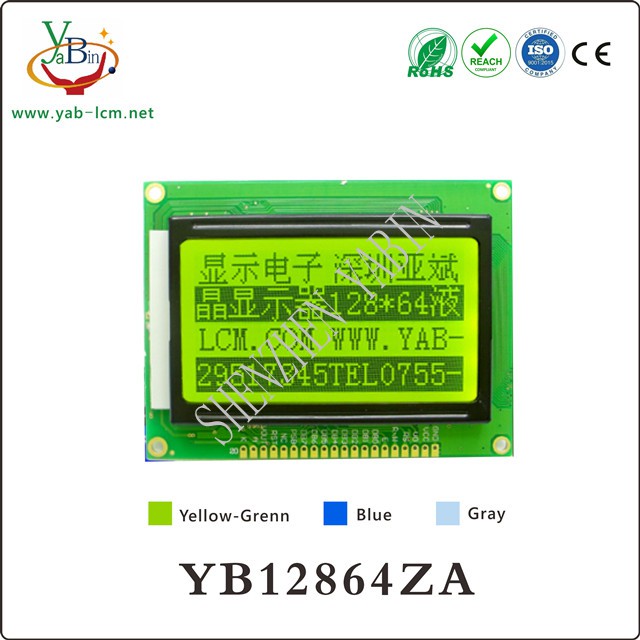

    128x64 Monochrome 128x64 Graphic Dot Matrix LCD Display YB12864ZA YB12864ZA Yellow-Green / Blue / Gray 93x70x13 mm 72x40 mm 66.52x33.24 mm 3.3V/5V 8-bit/4-bit Parallel,3-SPI Serial ST7920 or EQV 20 PIN

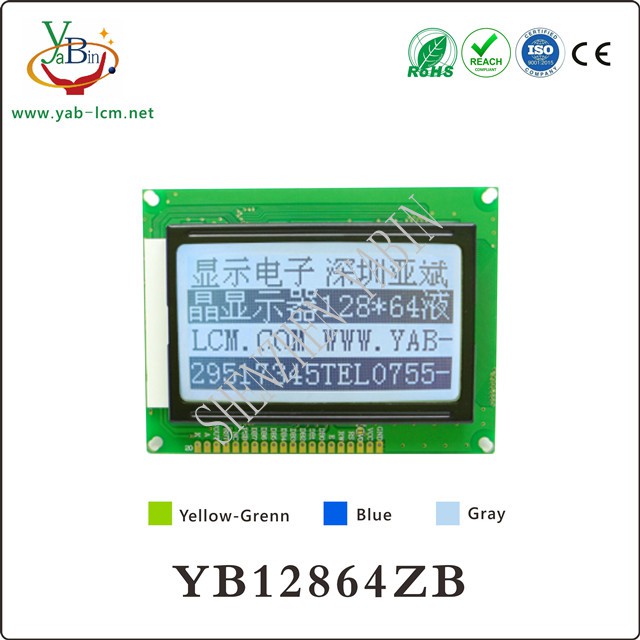

    128x64 128x64 Monochrome graphic lcd YB12864ZB YB12864ZB Yellow-Green / Blue / Gray 93x70x13 mm 72x40 mm 66.52x33.24 mm 3.3V/5V 8-bit/4-bit Parallel,3-SPI Serial ST7920 or EQV 20 PIN

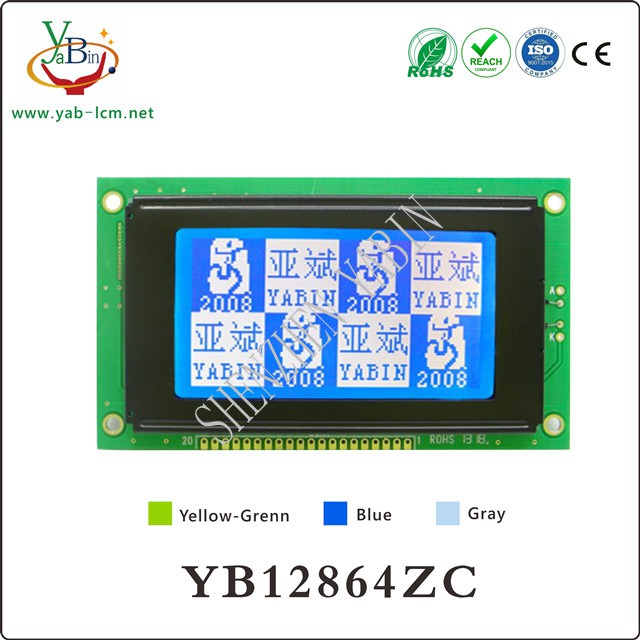

    128X64 128x64 lcd with ST7920 driver IC YB12864ZC YB12864ZC Yellow-Green / Blue / Gray 133.2x65.2x13 mm 73.4x38.8 mm 70.35x35.15 mm 3.3V/5V 8-bit/4-bit Parallel,3-SPI Serial ST7920 or EQV 20 PIN

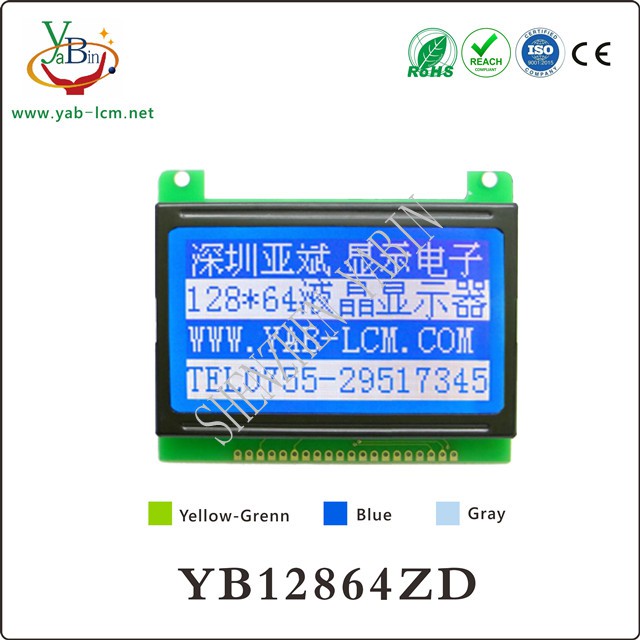

    128X64 128x64 Graphic Dot Matrix LCD YB12864ZD YB12864ZD Yellow-Green / Blue / Gray 78.7x65x13 mm 72x40 mm 66.52x33.24 mm 3.3V/5V 8-bit/4-bit Parallel,3-SPI Serial ST7920 or EQV 20 PIN
