Model No.： YB-2828GDEDF11
►Type: Graphic
►Size: 1.5 inch
►OLED 128x128
►Built-in controller SSD1351

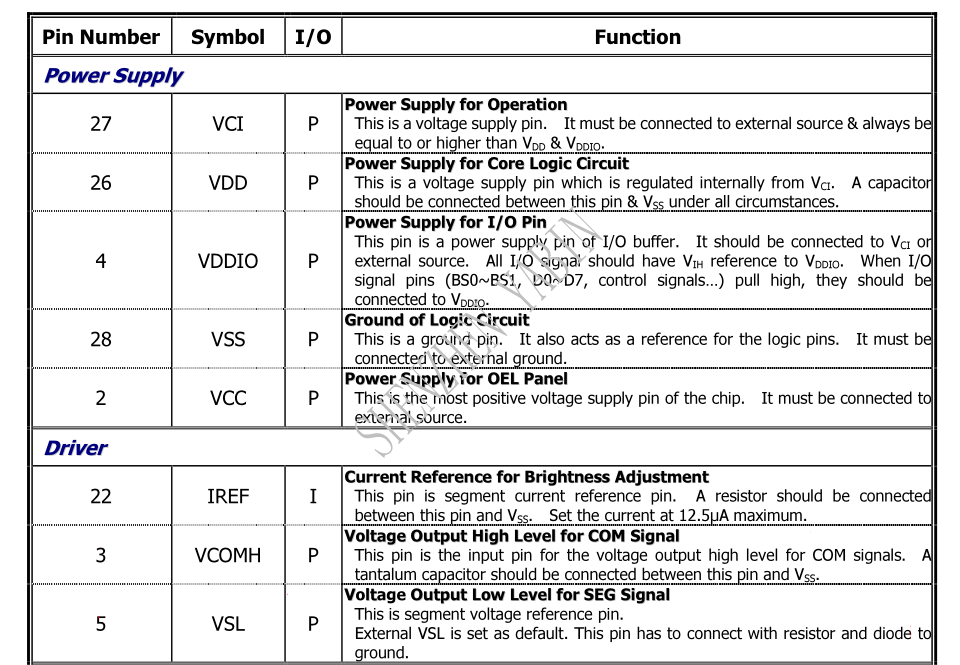

►3.3V Power supply
►1/128 duty

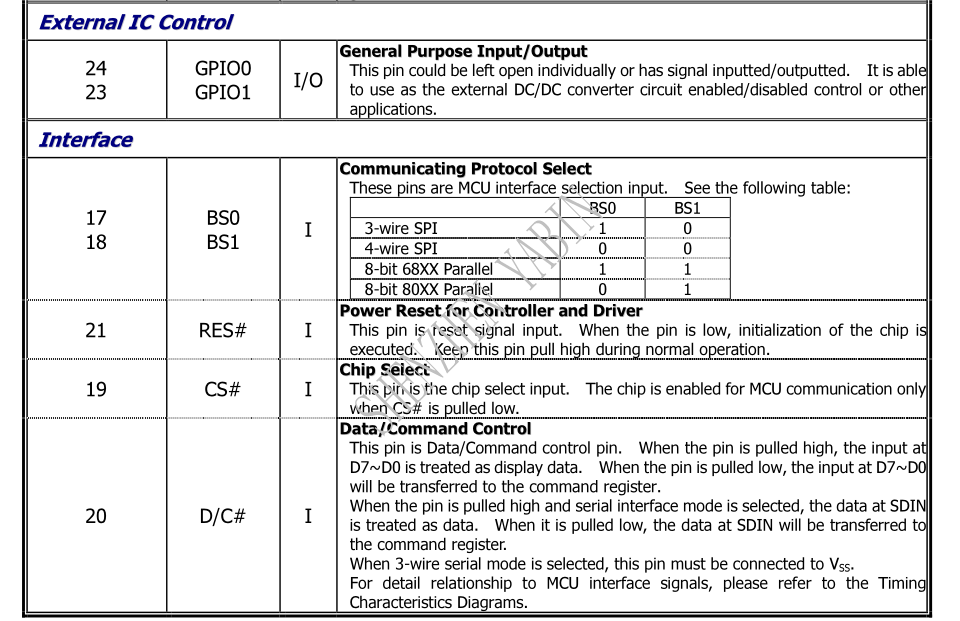

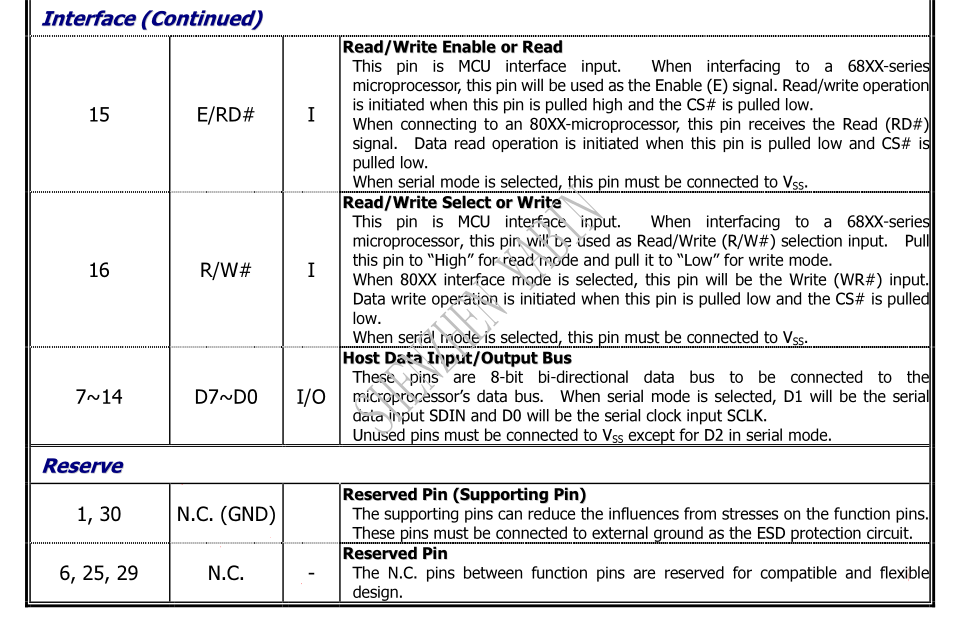

►Interface: 6800, 8080, SPI
►Display Color: full color

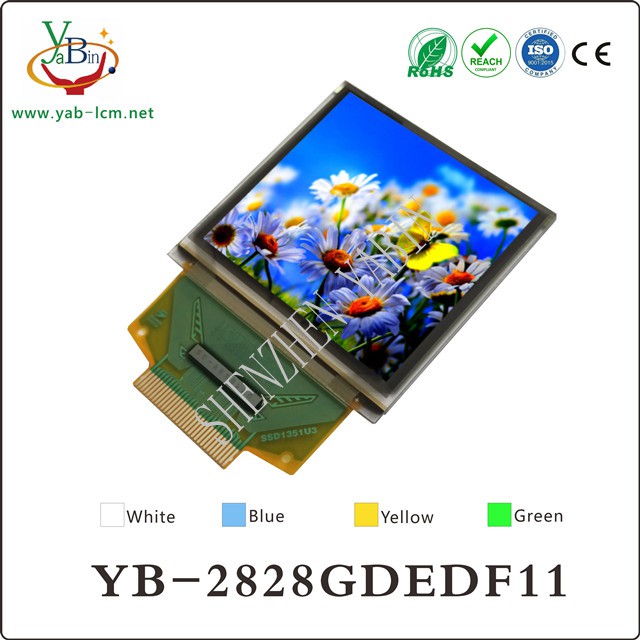

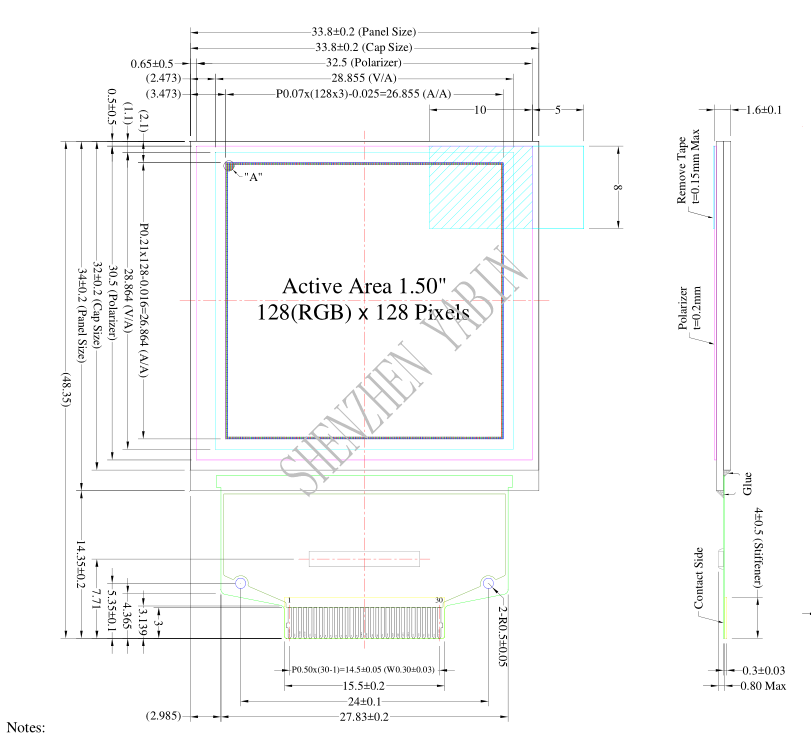

YB-2828GDEDF11 OLED screen which is made of 128x128 pixels, diagonal size 1.5 inch. It has the outline dimension of 33.8 x 48.35 mm and AA size 26.85 x 26.86 mm; it is built in with SSD1351 controller IC and it communicates via 6800/8080 8-bit parallel and 4-wire SPI serial interface, 3.3V power supply. It can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +80℃.
