0.91 inch 128X32 OLED screen YB-

Model No.： YB-2832KSWEG04

►Type: Graphic (Without Frame)
►Structure: COG
►Size: 0.91 inch OLED
►128x32 OLED Display
►Built-in controller SSD1306
►3V Power supply
►1/32 duty
►Interface: 4-wire SPI
►Display Color: White / Yellow /  Blue /Green

DESCRIPTION

0.91" OLED suitable for wearable device

The 0.91 inch is one of the most popular sizes of COG OLED for wearable displays .  128x32 OLED items no. YB-2832KSWEG04 is also built-in SSD1306 driver IC; it communicates via 4-wire serial SPI interface only. This controller's built-in voltage generation only need a single 3V power supply is needed.YB-2832KSWEG04 OLED module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃. These COG 0.91 inch OLED modules are ultra thin, lightweight and low power consumption which is great for handheld instruments, meters, smart grid, wearable device, E-cigarette, MP3, IoT, etc. One of the significant advantages of COG structure is the FPC usually is bendable comparing to TAB OLED since the FPC is flexible and there is no chip on the FPC. Therefore, the customers have less limitation to design the displays on their applications.

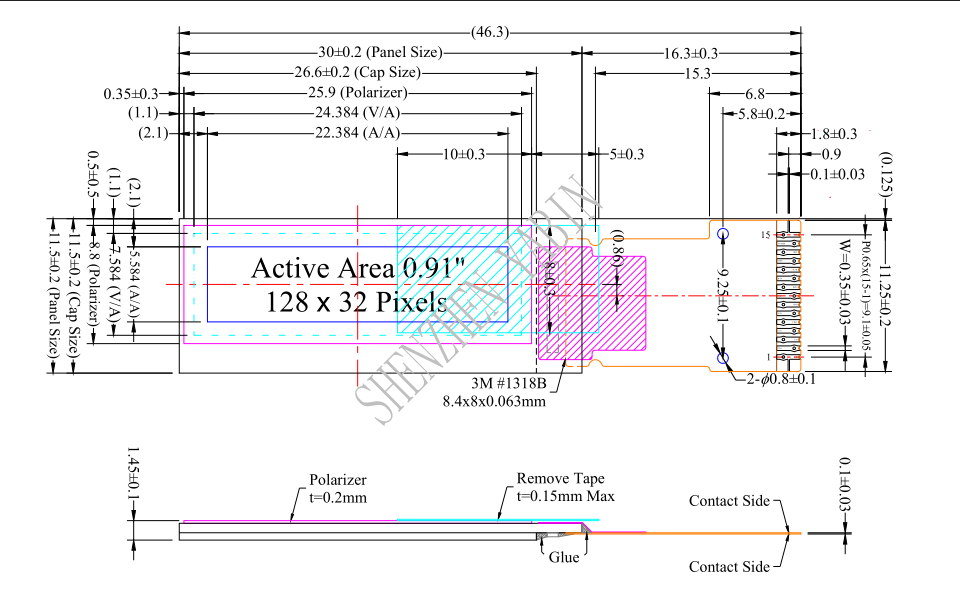

DRAWING


SPECIFICATIONS

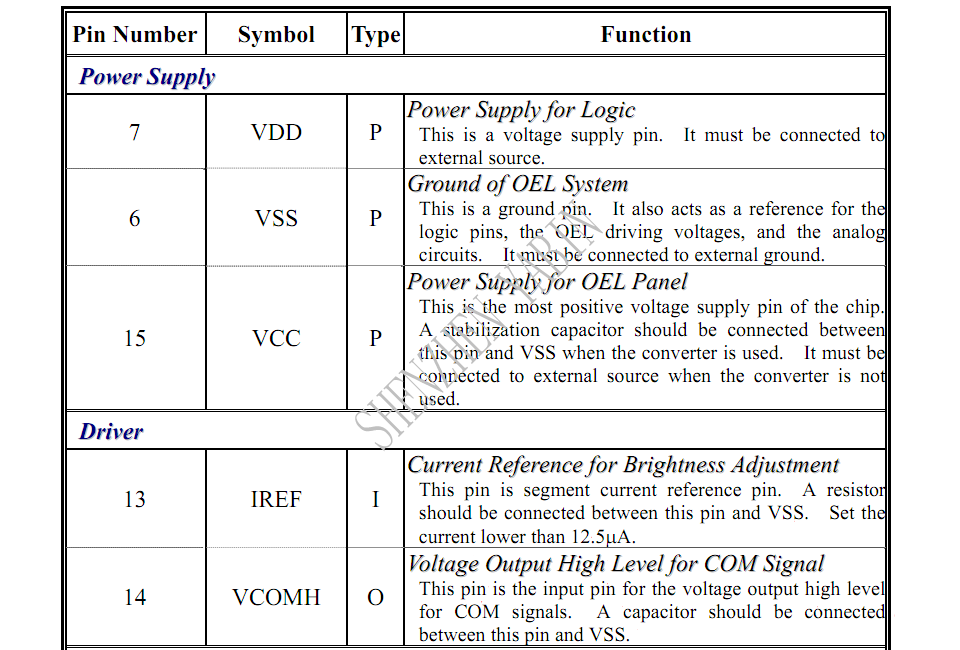

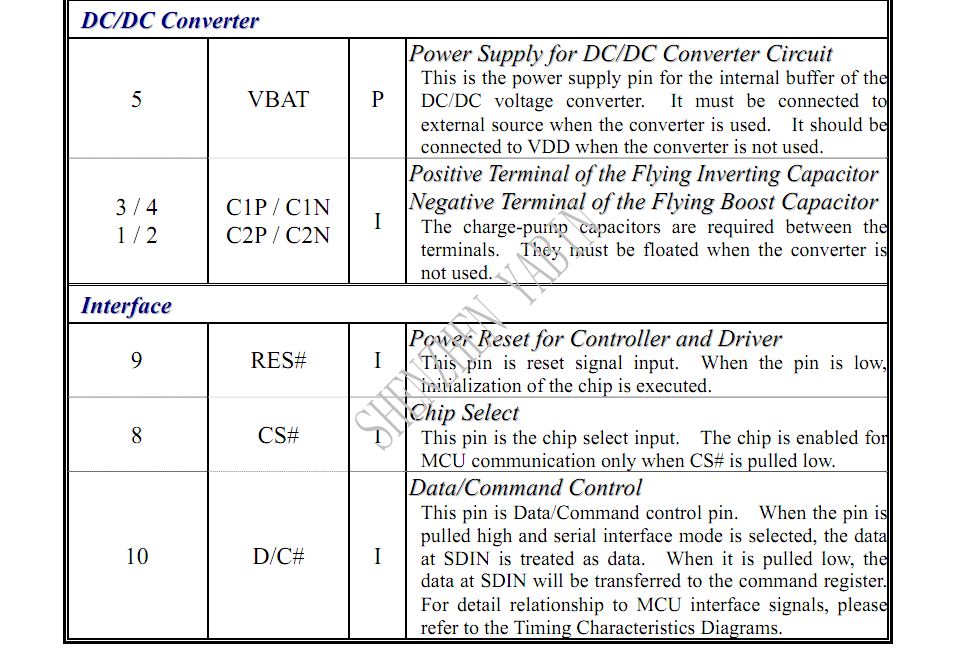

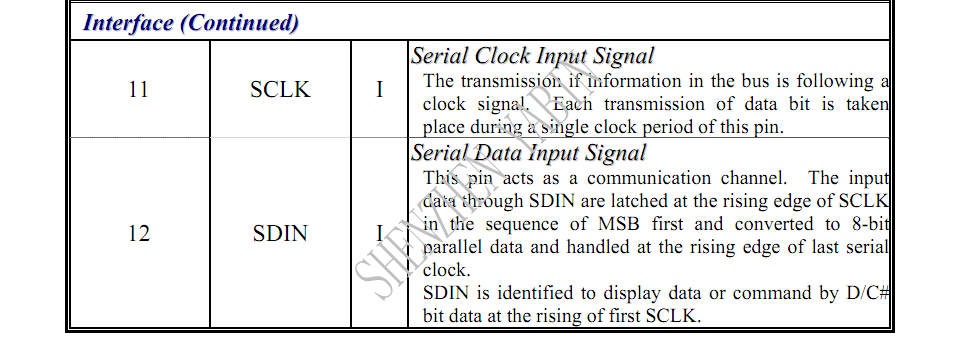

Interface Pin Function
