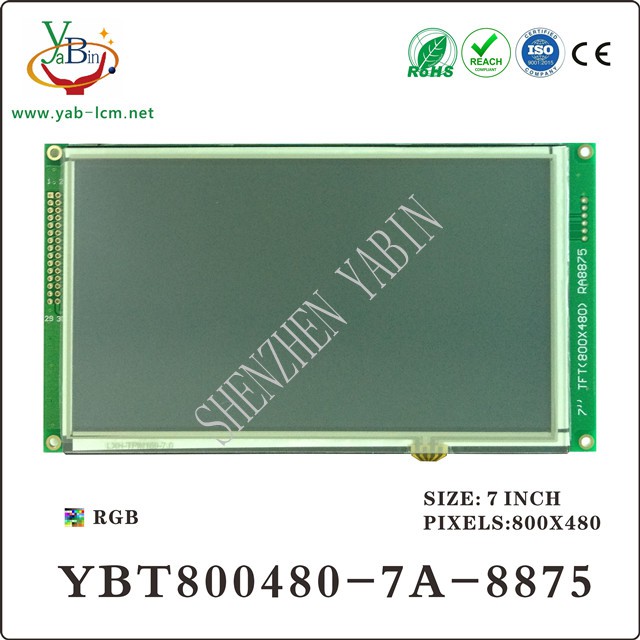

7 inch 800X480 TFT module with RA8875 controller ：YBT800480-7A-8875

Model No.： YBT800480-7A-8875

►Size : 7.0 inch
►Resolution : 800x480 dots
►Interface : 8080/6800 8bit/16-bit Parallel,3-wire,4-wire SPI,IIC
►Bulit-in Controller : RA8875

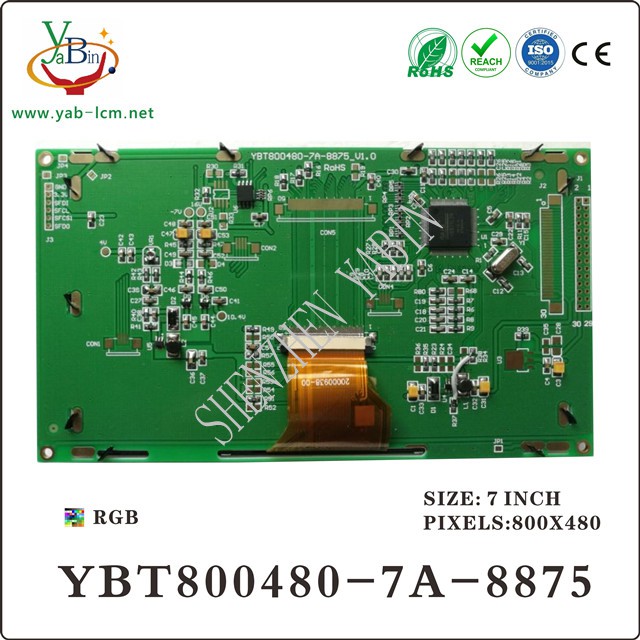

►Control Board : Yes
►Brightness (cd/m²) : 300CD
►Touch Screen : You can choose with or without

DESCRIPTION


The YBT800480-7A-8875 is a 7 inch  TFT module .  This display is  built in with RA8875  controller board, the model is support  8080/6800 8bit/16-bit Parallel,3-wire,4-wire SPI,IIC interface. The model 7" TFT LCD Display WF70QTZFGDBN0 is with outline dimension of 185x103.4x10.7mm and AA size 154.08x85.92 mm.

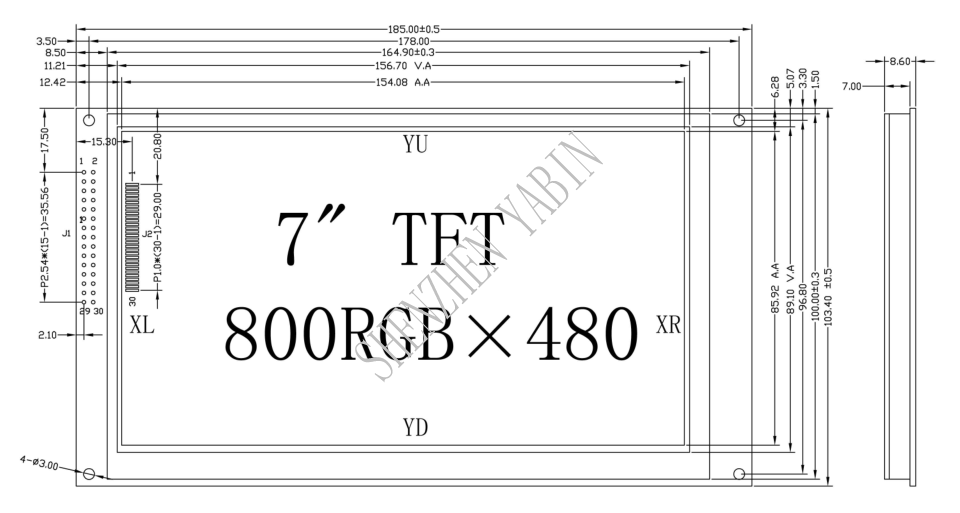

DRAWING


SPECIFICATIONS

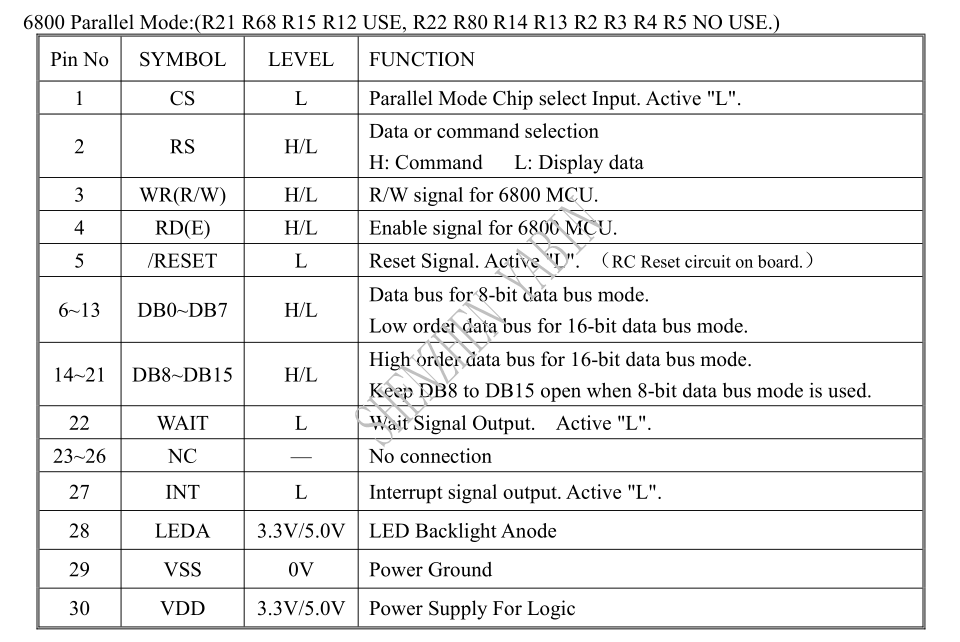

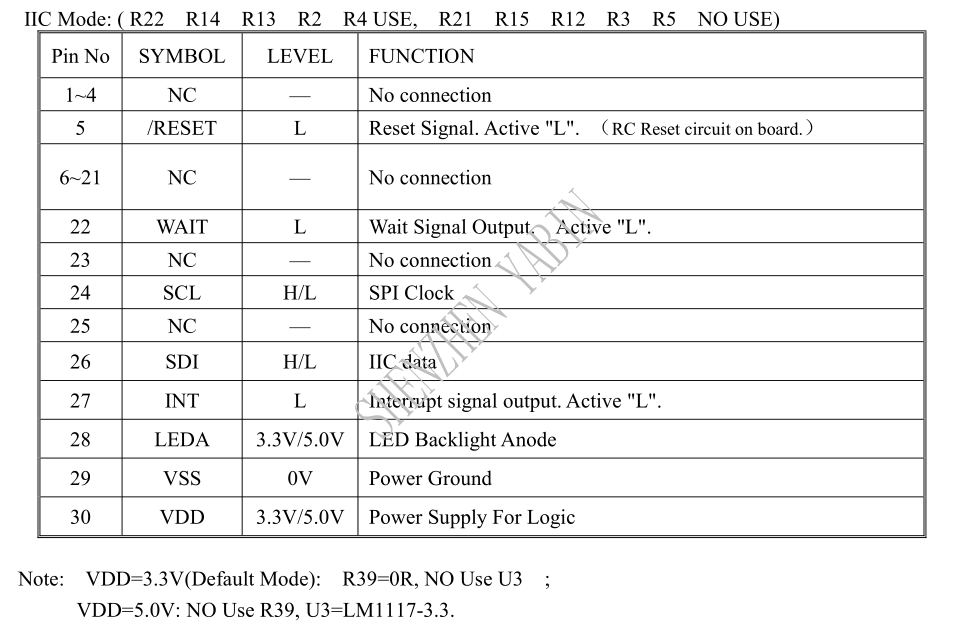

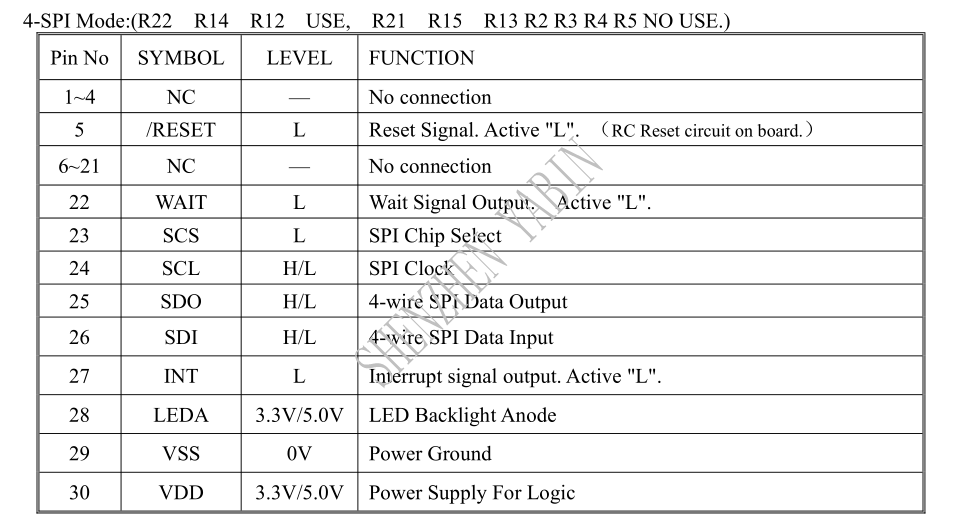

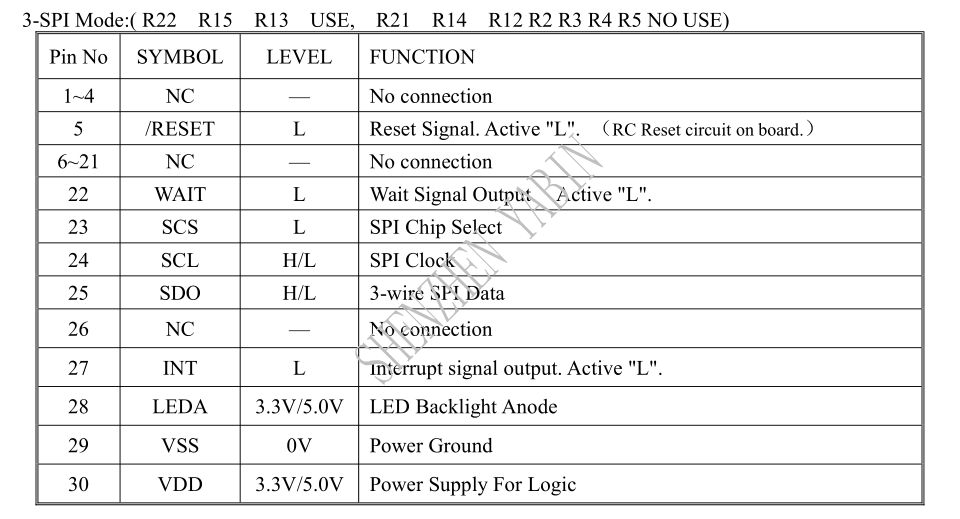

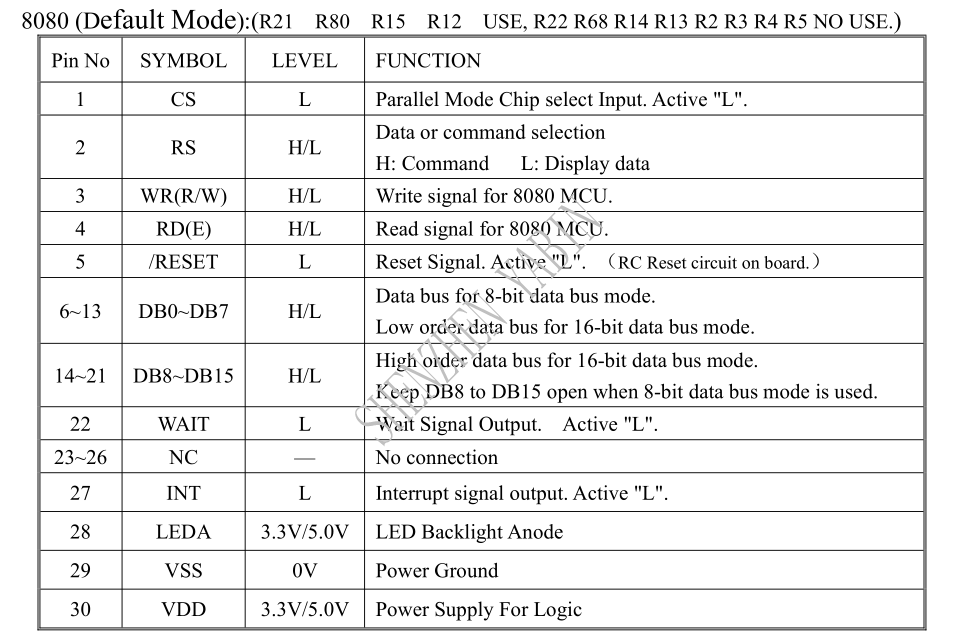

Interface
