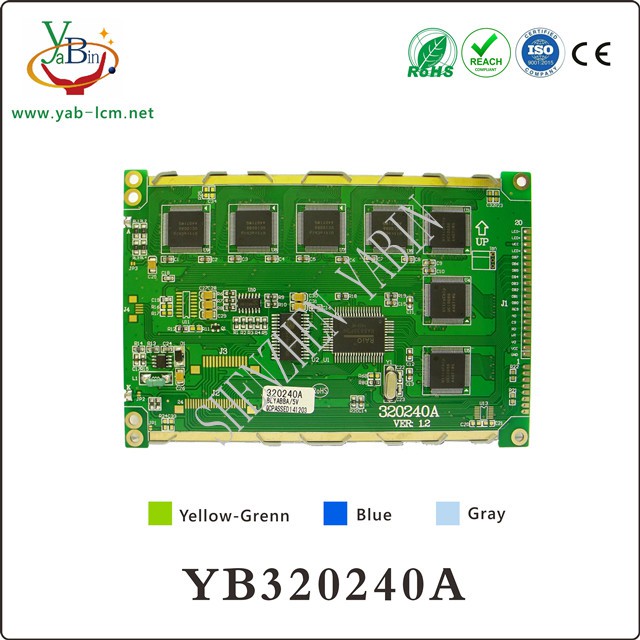

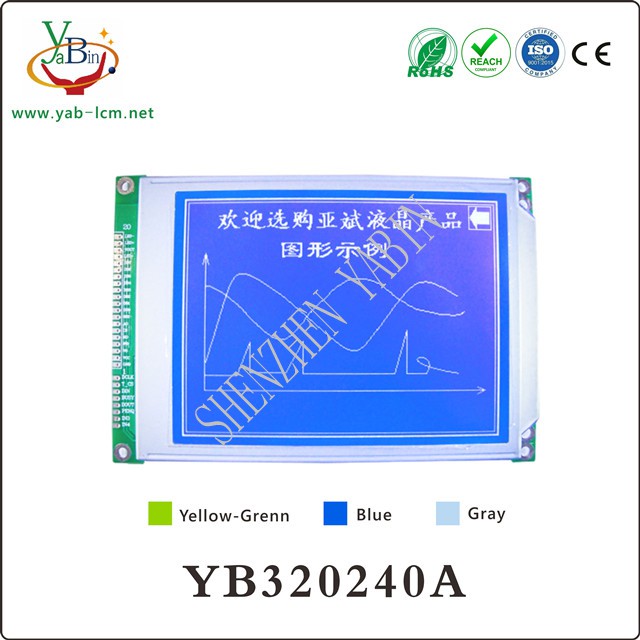

320x240 Graphic Liquid Crystal Display Module YB320240A

Model No.： YB320240A

►Graphic LCD Display 320x240
►320 x 240 dots
►You can choose with controller or no controller
►1/240 duty cycle
►+3.3V/5V power supply
►You can choose with Touch screen option or without  Touch screen option

DESCRIPTION

YB320240A is a mono LCD display module with 320x240 pixels. This mono LCD display YB320240A module is having the module dimension of 160x109 mm and AA size of 115.17x86.37 mm, diagonal size 5.7 inch. This YB320240A model you can choose  with controller on module or without  controller on module. This LCD display 320240 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

DRAWING




SPECIFICATIONS

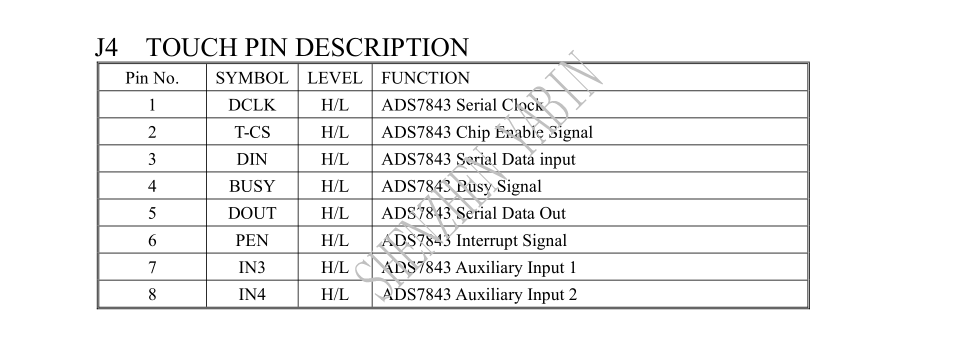

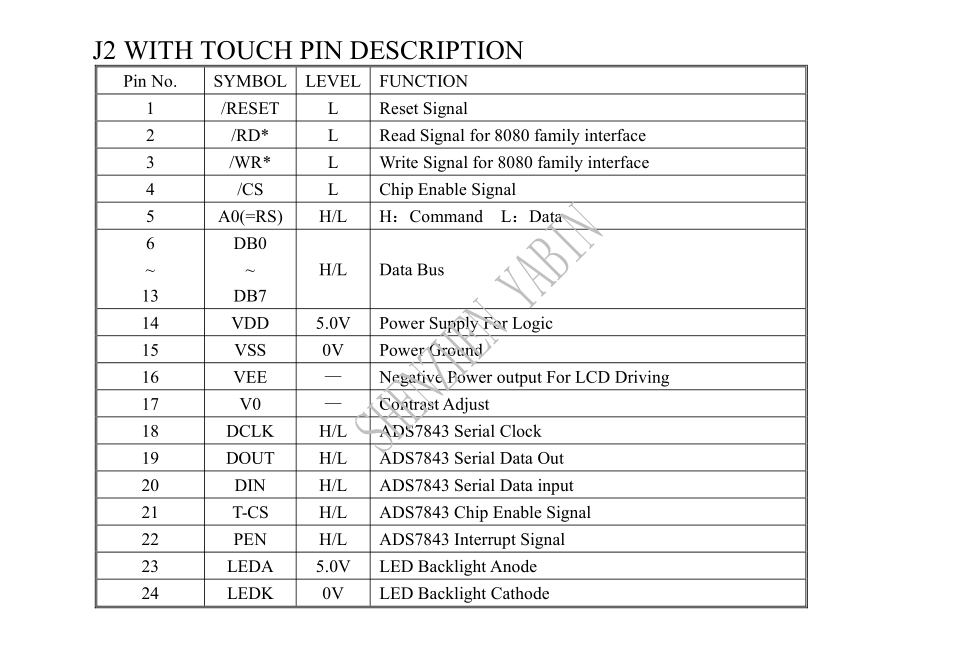

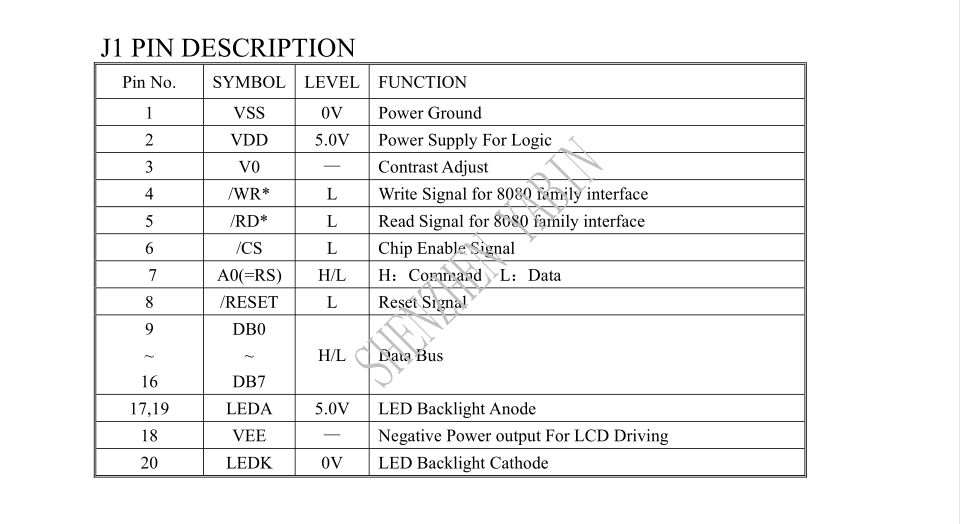

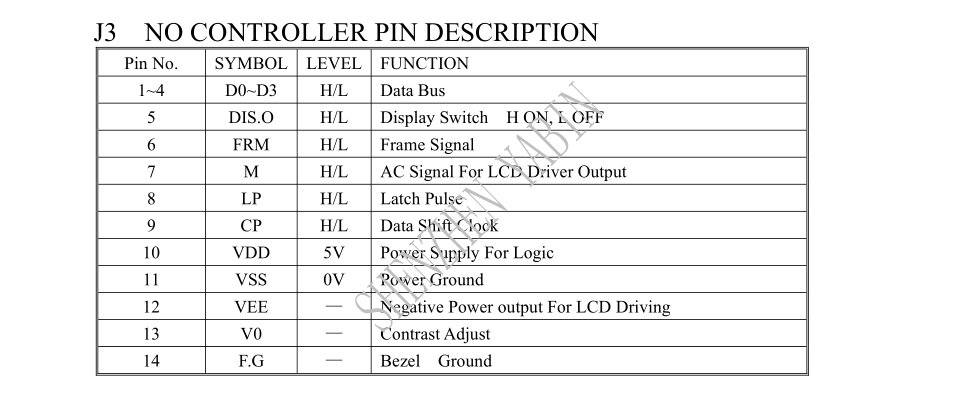

Interface Pin Function
