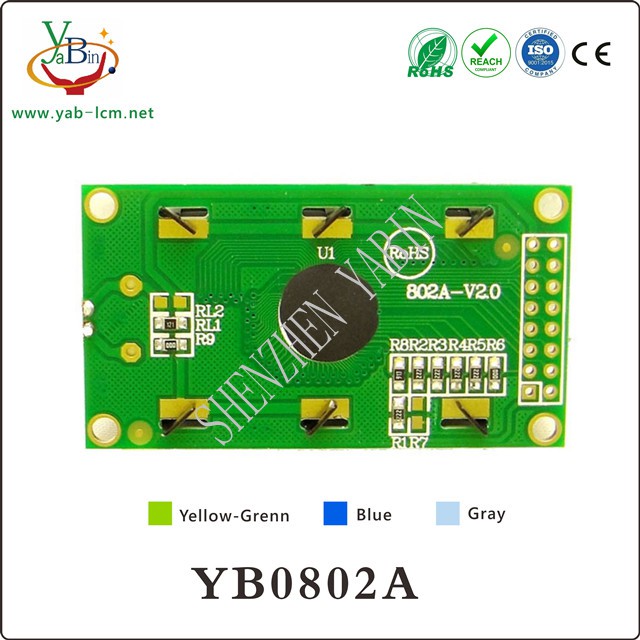

8x2 Character LCD Display Module YB0802A

Model No.： YB0802A

►Character LCD 8x2

►5x8 dots includes cursor
►Bulit-in controller (SPLC780D or Equivalent)
►+5V power supply (Also available for +3V)
►Negative voltage optional for +3V power supply
►1/16 duty cycle
►Interface :6800 8-bit/4-bit Parallel

DESCRIPTION

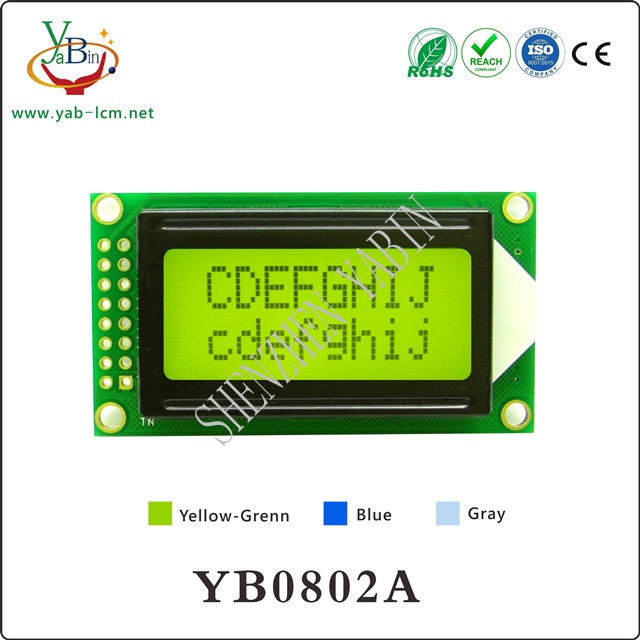

YB0802A is an 8 character by 2 lines 8x2 character LCD display. It is available in no backlight or with LED backlight options. This 8x2 LCD module is available in various LCD panel colors including gray, yellow/green and blue LCD options.  YB0802A LCD module is built in with SPLC780D controller (or equivalent).  The SPLC780D IC has different language fonts as options, there are English/Japanese, English/ European, English/Cyrillic (Russian) .YB0802A model  it’s default 6800 4/8-bit parallel 6800 interface.

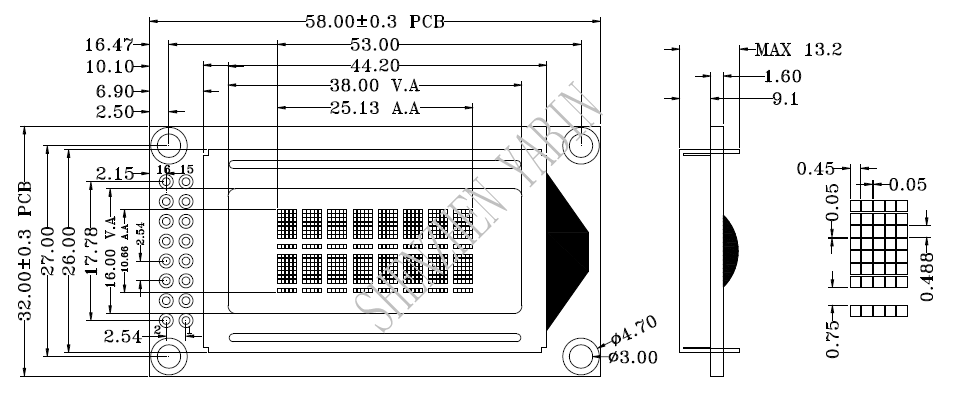

DRAWING






SPECIFICATIONS

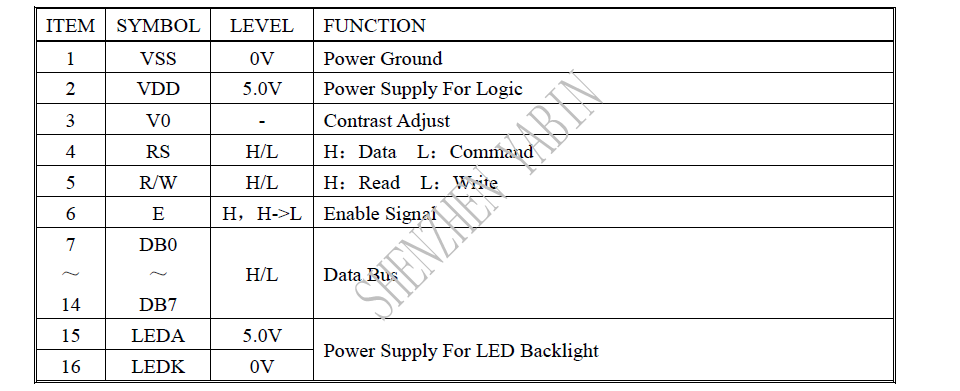

Interface Pin Function
